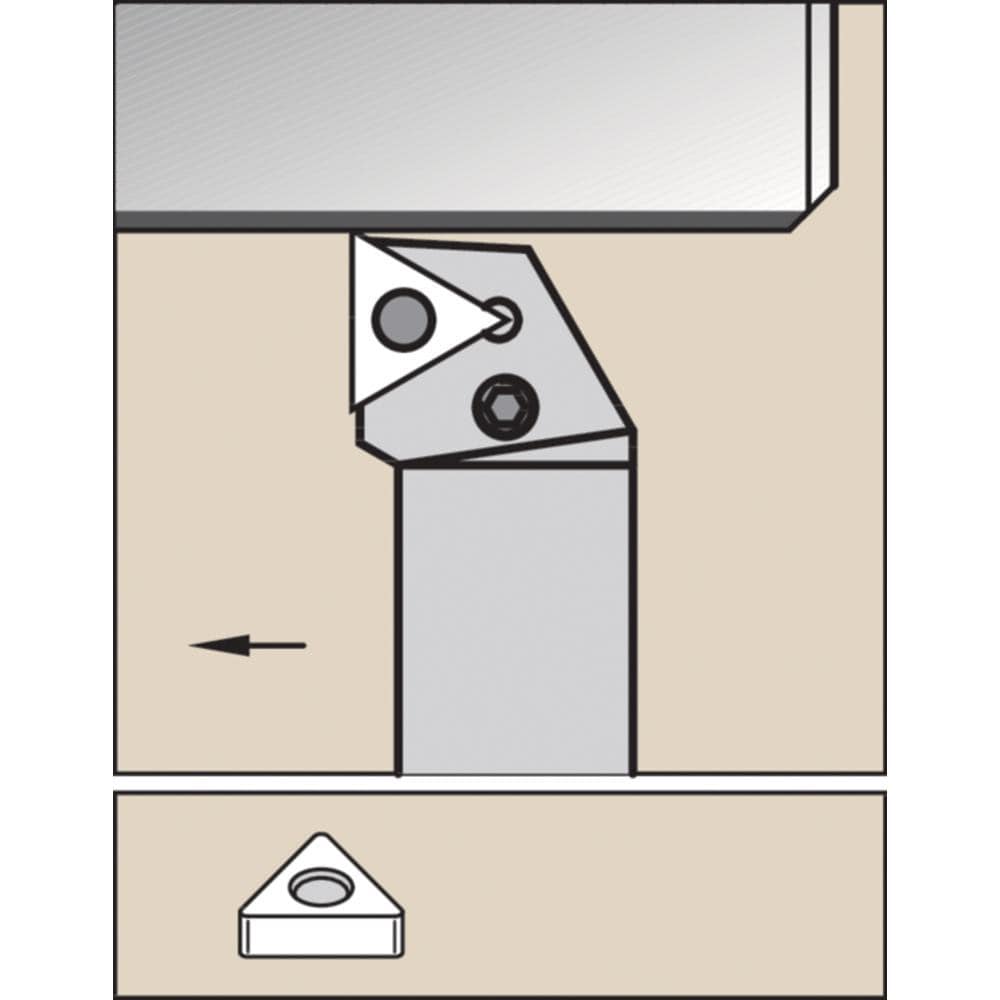

Brand: Widia / Part #: 3900163
Item #: 97732143
Brand: Widia
Model #: 3900163
Product Specifications
| Cutting Direction | Right Hand |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | 2706.. |
| Toolholder Style | PTGNR |
| Rake | Negative |
| Rake Angle | -6 (Axial);-6 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 9.000 |
| Insert Holding Method | Pin |
| Insert Compatibility | TN..2706.. |
| Shank Width (mm) | 40.00 |
| Shank Height (mm) | 40.00 |
| Series | PTGN |
| Overall Length (mm) | 300.0000 |
| Cutting Tool Application | Facing; Turning |
| Head Length (mm) | 30.99 |
| Back of Bar to Cutting Edge (mm) | 50.00 |
| Primary Workpiece Material | Universal |
| Insert Width (mm) | 15.88 |
| Toolholder Material | Steel |
| ISO Number | PTGNR4040T27 |
| Complete Insert Compatibility | TN.. |
| Insert Thickness | 6.35 |
| Coolant Through | No |
| Insert Inscribed Circle (mm) | 15.88 |
