Brand: Widia / Part #: 3879362
Item #: 98376650
Brand: Widia
Model #: 3879362
Product Specifications
| Cutting Direction | Right Hand |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | 1506.. |

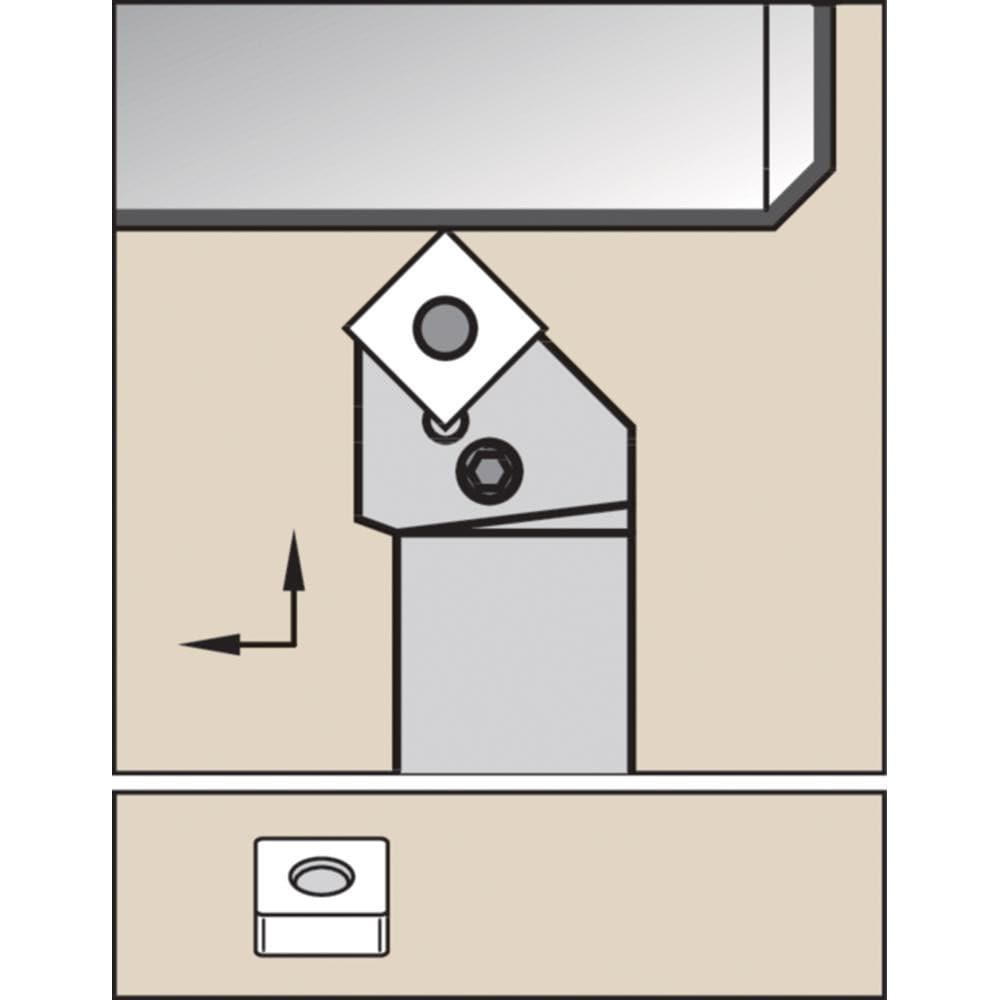

| Toolholder Style | PSSNR |
| Rake | Negative |
| Rake Angle | -8 (Radial);0 (Axial) |
| Multi-use Tool | Yes |
| Lead Angle | 45.000 |
| Insert Holding Method | Pin |
| Insert Compatibility | SN..1506.. |
| Shank Width (mm) | 25.00 |
| Shank Height (mm) | 32.00 |
| Series | PSSN |
| Overall Length (mm) | 180.2400 |
| Cutting Tool Application | Facing; Copying; Turning |
| Head Length (mm) | 32.00 |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Primary Workpiece Material | Universal |
| Insert Width (mm) | 15.88 |
| Toolholder Material | Steel |
| ISO Number | PSSNR3225P15 |
| Complete Insert Compatibility | SN.. |
| Insert Thickness | 6.35 |
| Coolant Through | No |
| Insert Inscribed Circle (mm) | 15.88 |
