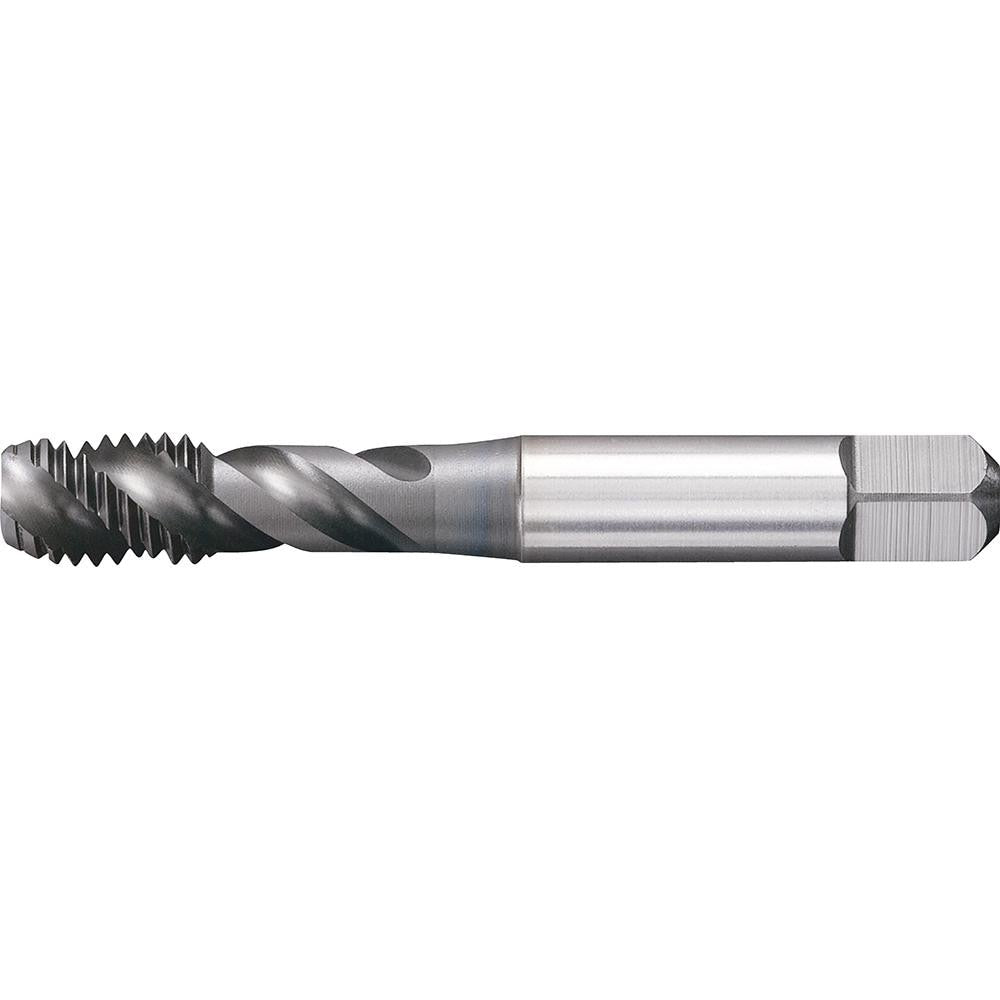

Brand: Widia / Part #: 3955191
Item #: 97191308
Brand: Widia
Model #: 3955191
Product Specifications
| Thread Size (Inch) | 1-8 |
| Chamfer | Modified Bottoming |
| Thread Limit | H6 |
| Class Of Fit | 3BX |
| Number Of Flutes | 5 |
| Material | Powdered Metal |
| Threads per Inch | 8 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TiCN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 5.1300 |
| Thread Depth (Decimal Inch) | 2.5800 |
| Thread Pitch (Decimal Inch) | 0.1250 |
| Thread Standard | UNC |
| Material Grade | WU32MG |
| Shank Diameter (Decimal Inch) | 0.8000 |
| Square Size (Decimal Inch) | 0.5970 |
| Material Application | High-Temperature Alloy; Steel |
| Series | GT30 |
