Brand: Widia / Part #: 2825693
Item #: 99698078
Brand: Widia
Model #: 2825693

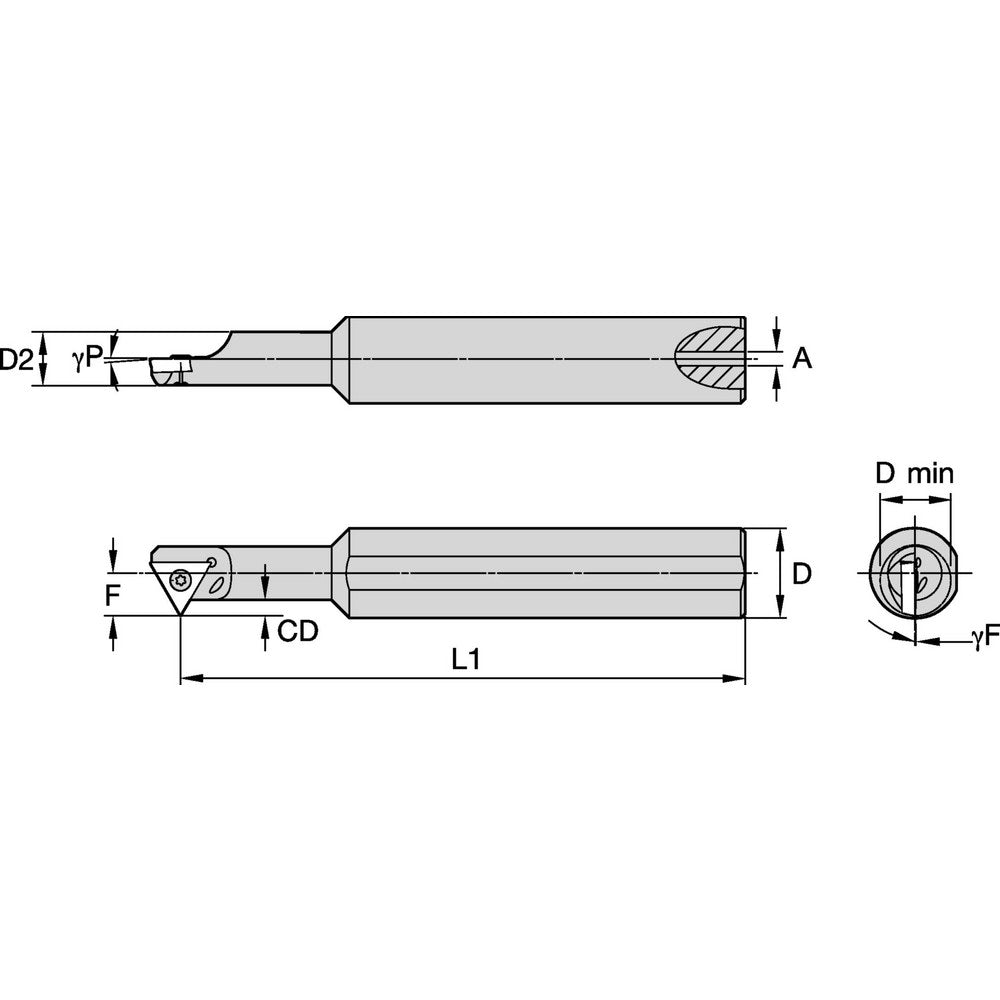

Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 0.4780 |
| Maximum Bore Depth (Decimal Inch) | 1.1250 |
| Maximum Bore Depth (Inch) | 1-1/8 |
| Toolholder Style | QSII |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Compatible Insert Size Code | TB..2150 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Rake Angle | 0.000 |
| Lead Angle | 30.000 |
| Series | QSII |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (mm) | 6.35 |
| Compatible Insert Thickness (Decimal Inch) | 0.0938 |
| Compatible Insert Thickness (mm) | 2.38 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5465 |
| Center to Cutting Edge (Decimal Inch) | 0.2340 |
| Primary Workpiece Material | Universal |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Neck Diameter (Decimal Inch) | 0.3750 |
| Neck Diameter (Inch) | 3/8 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Coolant Hole Diameter (Decimal Inch) | 0.0980 |
| Number of Inserts Included in Order | 0 |
| Manufacturers Catalog Number | QSII375625112560R |
| Radial Rake | -2 |
| Coolant Through | Yes |
