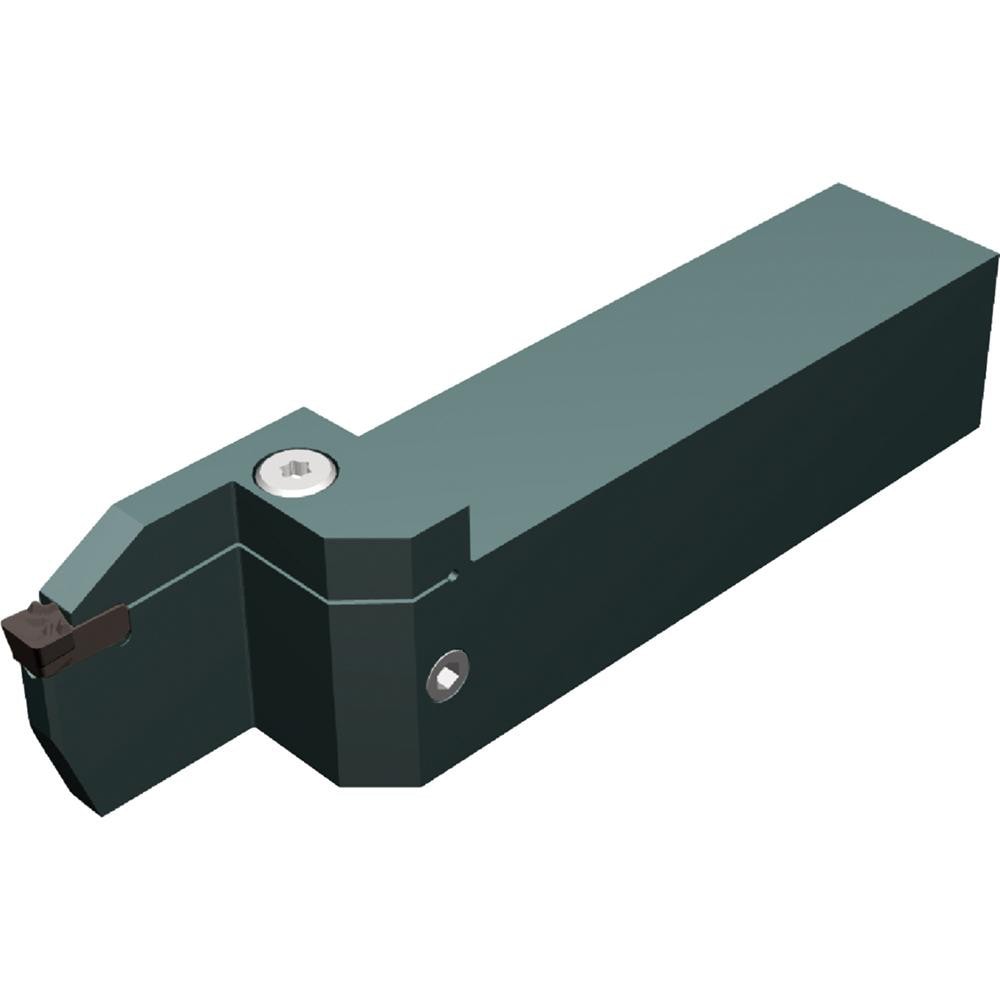

Brand: Widia / Part #: 6461977

Brand: Widia / Part #: 6461977


Item #: 98380827
Brand: Widia
Model #: 6461977

Product Specifications

Internal or External External
Maximum Depth of Cut (Decimal Inch) 1.0240
Hand of Holder Left Hand
Maximum Groove Width (Decimal Inch) 0.1970
Minimum Groove Width (Decimal Inch) 0.1969
Toolholder Style WGCSM
Tool Material Steel
Insert Holding Method Clamp
Compatible Insert Size Code 0500
Insert Compatibility WG0500M05P04
Shank Height (Inch) 1-1/4
Shank Height (Decimal Inch) 1.2500
Shank Length (Decimal Inch) 4.1500
Shank Width/Diameter (Decimal Inch) 1.2500
Shank Width/Diameter (Inch) 1-1/4
Series WGC
Overall Length (Decimal Inch) 6.0000
Cutting Tool Application Grooving; Facing; Cut-Off; Turning
Back of Bar to Cutting Edge (Decimal Inch) 1.2530
Head Height (mm) 42.000
Head Length (Decimal Inch) 1.8504
Primary Workpiece Material Universal
Insert Seat Size 5.0
Coolant Through Yes
$188.90
