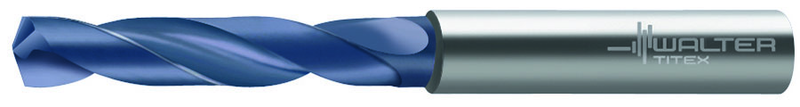

DC150-03-04.763A0 SC DRILL 3XD

Item #: TT096618081
Manufacturer: Walter-Titex
Mfg #: 6618081

Technical Specifications:
•Angle: 140 Degree •Brand Name: Walter-Titex •Coating: VHM •Decimal Equivalent: 0.1875 •Drill Diameter: 3/16 •Flute Length: 1-7/64 •Flute Length x Diameter Ratio: 3xD •Helix Angle: 30 Degree •List No.: A3265TFL •Material: Carbide •Max Drilling Depth: 25/32 •Model Number: 6618081 •Number of Flutes: 2 •Overall Length: 2-19/32 •Shank Size: 3/16 •Shank Style: Round

Description:


Shipping Info:
•Actual Weight - .0485
