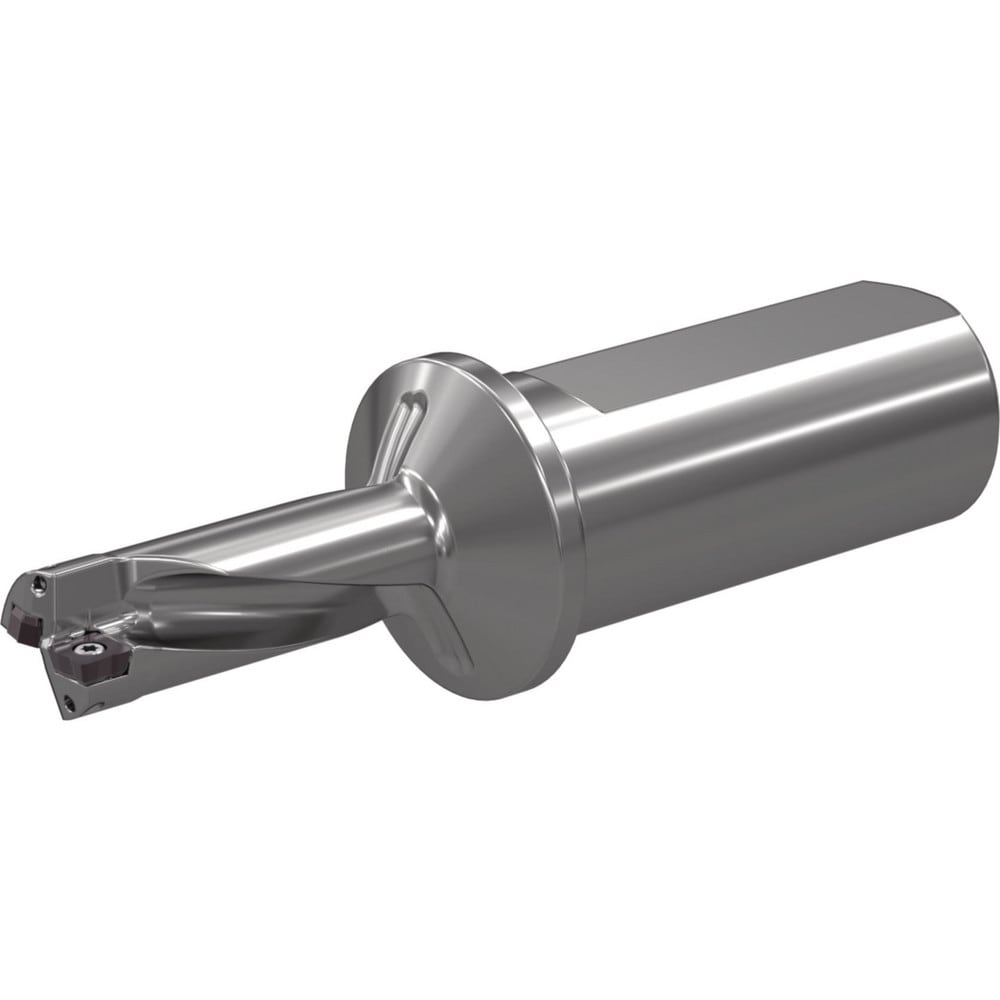

Brand: Widia / Part #: 5537168

Brand: Widia / Part #: 5537168


Item #: 97245450
Brand: Widia
Model #: 5537168

Product Specifications

Maximum Drill Depth 2.0040 in
Drill Depth by Diameter Ratio 2xD
Maximum Depth of Cut (mm) 50.91
Shank Type Weldon Flat
Shank Diameter (mm) 32.0000
Shank Diameter (Decimal Inch) 1.2598
Cutting Direction Right Hand
Drill Body Length to Flange (mm) 80.00
Toolholder Style TCF
Nose Diameter (Mm) ( - 2 Decimals) 25.00
Overall Length (mm) 140.9100
Overall Length 140.91
Through Coolant Yes
Series Top Cut 4
Flute Length (mm) 75.90
Shank Length (mm) 60.000
Gage Length (mm) 80.91
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Number of Shank Flats 1
Flute Type Helical Flute
Maximum Cutting Diameter (mm) 25.00
Projection (mm) 80.910
Number Of Flutes 2
Coolant Through Yes
$357.31
