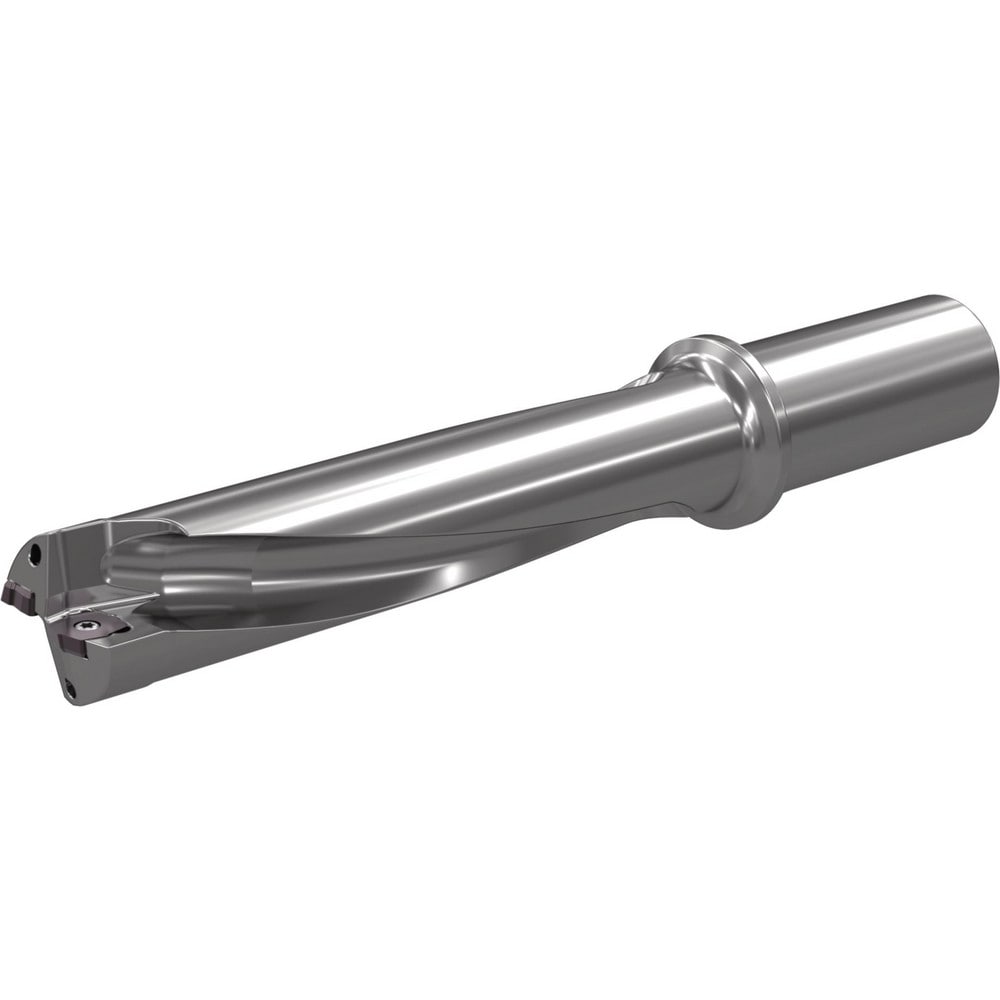

Brand: Widia / Part #: 5577941

Brand: Widia / Part #: 5577941


Item #: 90827312
Brand: Widia
Model #: 5577941

Product Specifications

Maximum Drill Depth 2.4630 in
Drill Depth by Diameter Ratio 4xD
Maximum Depth of Cut (mm) 62.56
Shank Type Weldon Flat
Shank Diameter (mm) 25.0000
Shank Diameter (Decimal Inch) 0.9843
Cutting Direction Right Hand
Drill Body Length to Flange (mm) 84.00
Toolholder Style TCF
Nose Diameter (Mm) ( - 2 Decimals) 15.50
Overall Length (mm) 140.5600
Overall Length 140.56
Through Coolant Yes
Series Top Cut 4
Flute Length (mm) 79.60
Shank Length (mm) 56.000
Gage Length (mm) 84.56
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Number of Shank Flats 1
Flute Type Variable Index
Maximum Cutting Diameter (mm) 15.50
Projection (mm) 84.560
Number Of Flutes 2
Coolant Through Yes
$357.31
