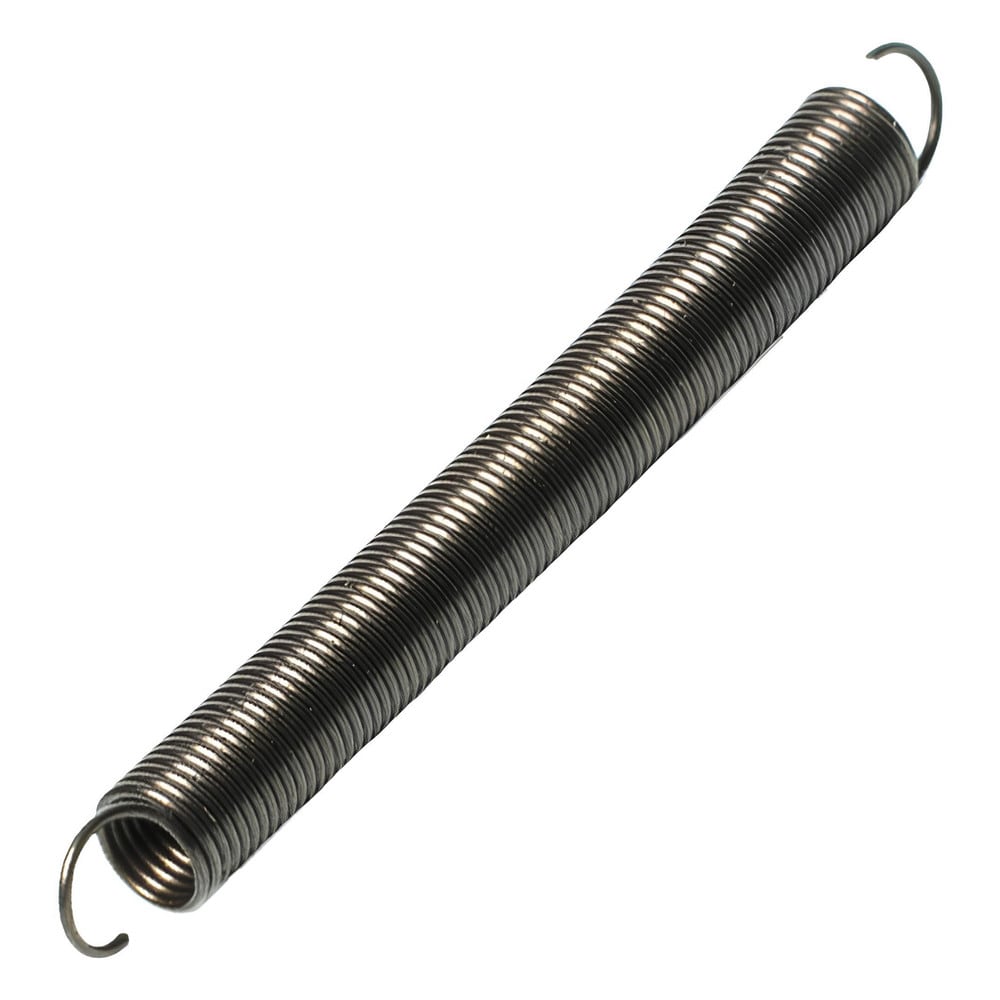

Extension Springs; End Type: Hook; Outside Diameter (Decimal Inch
Item #: 03168697
Brand: Associated Spring Raymond
Model #: MH05000751750M
Product Specifications
| End Type | Hook |
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.5000 |
| Spring Rate | 49.4000 |
| Material | Music Wire |
| Overall Length (Decimal Inch) | 1.9000 |
| Initial Tension (Lb.) | 2.75 |
| Maximum Extended Length (Decimal Inch) | 2.3100 |
| Free Length (Inch) | 1-3/4 |
| Inside Hook Length (Fractional Inch) | 1-3/4 |
| Standards | AMS 5112; ASTM A228 |
| Finish/Coating | Dry to Touch Oil |
| Wire Size (Decimal Inch) | 0.0750 |
| UNSPSC Code | 31161907 |
