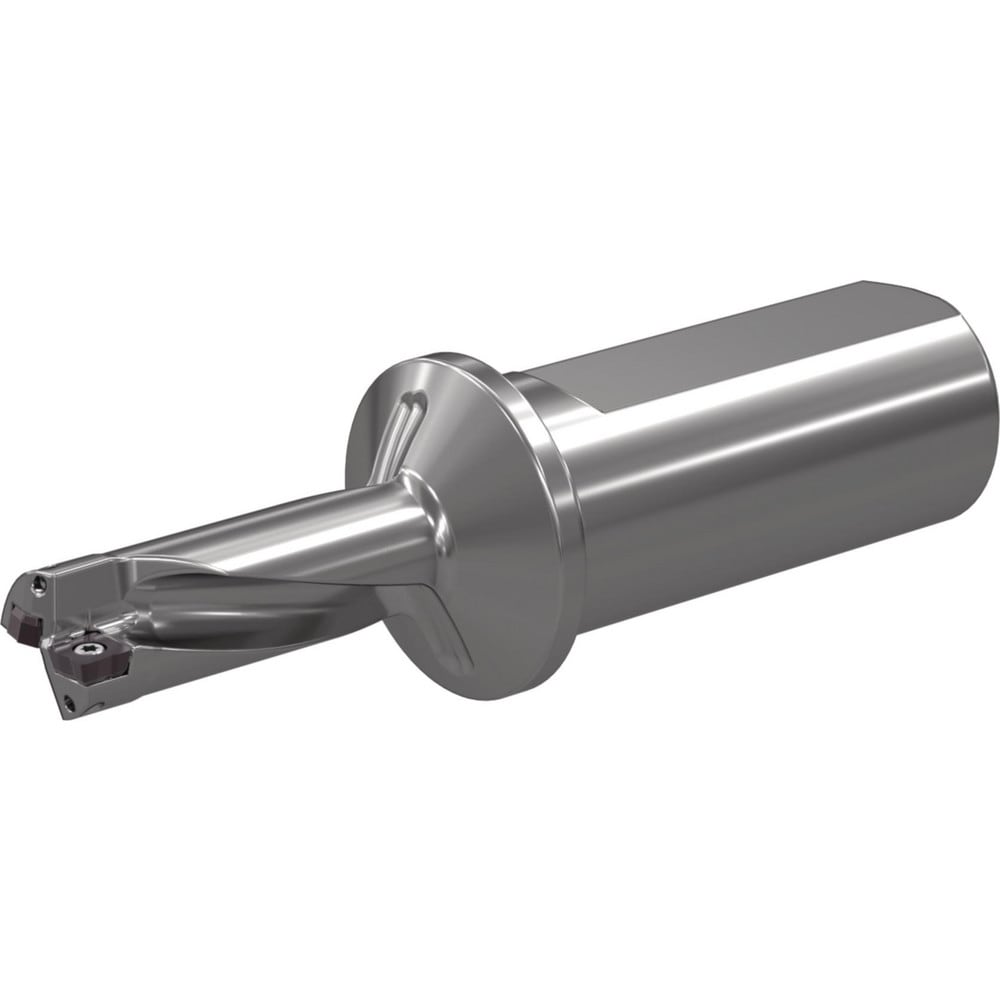

Brand: Widia / Part #: 5537821

Brand: Widia / Part #: 5537821


Item #: 90956673
Brand: Widia
Model #: 5537821

Product Specifications

Maximum Drill Depth 2.1640 in
Drill Depth by Diameter Ratio 2xD
Maximum Depth of Cut (mm) 54.97
Shank Type Weldon Flat
Shank Diameter (mm) 32.0000
Shank Diameter (Decimal Inch) 1.2598
Cutting Direction Right Hand
Drill Body Length to Flange (mm) 86.00
Toolholder Style TCF
Nose Diameter (Mm) ( - 2 Decimals) 27.00
Overall Length (mm) 146.9700
Overall Length 146.97
Through Coolant Yes
Series Top Cut 4
Flute Length (mm) 82.00
Shank Length (mm) 60.000
Gage Length (mm) 86.97
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Number of Shank Flats 1
Flute Type Helical Flute
Maximum Cutting Diameter (mm) 27.00
Projection (mm) 86.970
Number Of Flutes 2
Coolant Through Yes
$357.31
