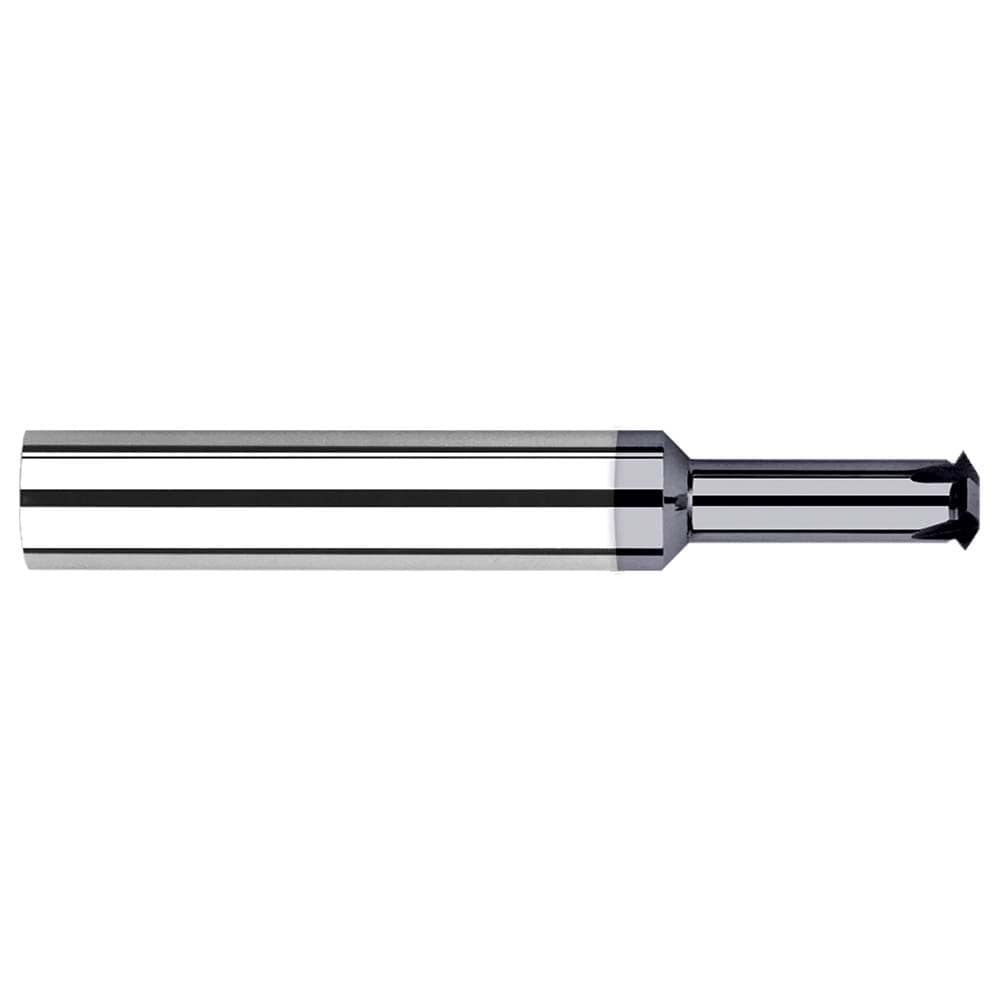

Brand: Harvey Tool / Part #: 932915-C3
Item #: 82498437
Brand: Harvey Tool
Model #: 932915-C3
Product Specifications
| Maximum Threads Per Inch | 44 |
| Minimum Pitch (Decimal Inch) | 0.0250 |
| Minimum Threads Per Inch | 40 |
| Maximum Pitch (Decimal Inch) | 0.0227 |
| Material | Solid Carbide |
| Thread Type | Internal/External |
| Thread Size | #5-40 - #5-44 |
| Thread Depth (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 3/16 |
| Cutting Diameter (Inch) | 3/32 |
| Minimum Nominal Diameter (Inch) | #5 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Neck Diameter (Decimal Inch) | 0.0500 |
| Shank Length (Decimal Inch) | 1.8750 |
| Series | Thread Milling Cutters - Single Form - UN Threads |
| Thread Standard | UN 60 Degree |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
