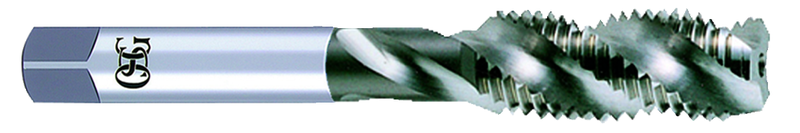

5/16-24 Dia. - STI - H3 - 3 FL - Spiral Flute Bottoming Tap

Item #: TP428013700
Manufacturer: OSG USA, Inc.
Mfg #: 8013700

Technical Specifications:
•Brand Name: OSG USA, Inc. •Class of Fit: H3 •Coating: Bright •Helix Angle: 45 ° •List No.: S108 •Material: HSSE •Number of Flutes: 3 •Overall Length: 2-15/16 •Size: 5/16-24 •Size Type: Inch •Style: Bottoming •Type: STI Tap

Description:
•STI (screw thread insert) taps •High speed steel

Shipping Info:
•Actual Weight - .0750 •Dimensions - Height: .600 Length: 3.65 Width: .600
