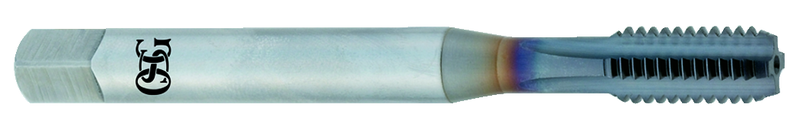

M14 x 2.00 Dia. - D7 - 5 FL - VC10 - TiCN - Bottoming Straight Flute Tap

Item #: TP291105300808
Manufacturer: OSG USA, Inc.
Mfg #: 1105300808

Technical Specifications:
•Brand Name: OSG USA, Inc. •Chamfer Length: 1.5P - 2P •Class of Fit: D7 •Coating: TiCN •For Use With: Cast Iron / Aluminum •List No.: 11053 •Material: VC-10 •Number of Flutes: 5 •Overall Length: 110mm •Pitch: 2.0 •Size: M14x2.0 •Size Type: Metric •Special Feature: DIN Length / Coolant Thru •Style: Bottoming •Thread Length: 1-21/32 •Trade Name: OSG EXOTAP ® DC OIL Taps •Type: Straight Flute

Description:
•EXOTAP DC Oil Bottom Taps •DIN Overall length Coolant thru •VC10 material to achieve high-speed tapping & long tool life •TiCN Coated •Designed for tapping cast aluminum and cast iron. Provides excellent tool life. Recommended use with synchronized spindle.

Shipping Info:
•Actual Weight - .1800 •Dimensions - Height: .850 Length: 5.05 Width: .900
