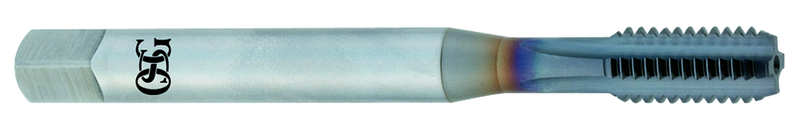

9/16-18 Dia. - H5 - 5 FL - VC10- TiCN - Bottoming - Straight Flute Tap

Item #: TP291005602108
Manufacturer: OSG USA, Inc.
Mfg #: 1005602108

Technical Specifications:
•Brand Name: OSG USA, Inc. •Chamfer Length: 1.5P - 2P •Class of Fit: H5 •Coating: TiCN •List No.: 10056 •Material: VC-10 •Number of Flutes: 5 •Overall Length: 3-19/32 •Size: 9/16-18 •Size Type: Inch •Style: Bottoming •Thread Length: 1-21/32 •Thread Type: UNF •Trade Name: OSG EXOTAP ® DC Taps •Type: Straight Flute

Description:
•OSG List No. 10056

Shipping Info:
•Actual Weight - .1650 •Dimensions - Height: .850 Length: 5.05 Width: .900
