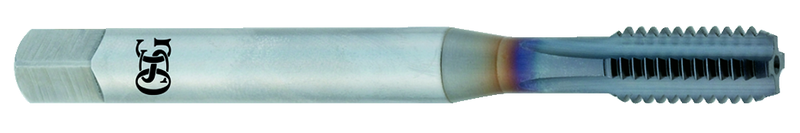

1/2-20 4FL H5 VC-10 Straight Fl Tap - TiCN

Item #: TP251005601708
Manufacturer: OSG USA, Inc.
Mfg #: 1005601708

Technical Specifications:
•Brand Name: OSG USA, Inc. •Chamfer Length: 1.5P - 2P •Class of Fit: H5 •Coating: TiCN •List No.: 10056 •Material: VC-10 •Number of Flutes: 4 •Overall Length: 3-3/8 •Size: 1/2-20 •Size Type: Inch •Style: Bottoming •Thread Length: 1-21/32 •Thread Type: UNF •Trade Name: OSG EXOTAP ® DC Taps •Type: Straight Flute

Description:
•OSG List No. 10056

Shipping Info:
•Actual Weight - .1100 •Dimensions - Height: .650 Length: 4.95 Width: .700
