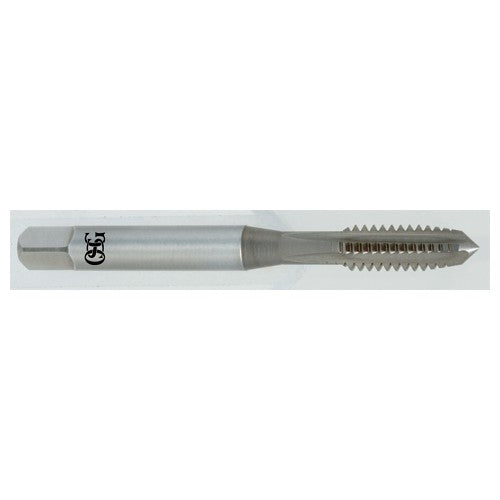

10-24 4Fl Oversize H7 HSS-CO Straight Flute Plug Tap-Nitride
Item #: TP103146203
Brand: OSG USA, Inc.
Model #: 3146203
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #10 |
| Tool Type | Hand Tap |
| Threads per Inch (TPI) | 24 |
| Chamfer | 4P-4.5P |
| Thread Standard | NC |
| Coating | Nitride |
| Overall Length (OAL) | 2-3/8″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 7/8″ |
| End Shape | Chamfer |
| Usable Length (LU) | 0.866″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Shank Type | Straight |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Measurement Type | Wire Gage |
| Cutting Edge Material | HSSCo |
| Series/List # | 114 |
| Thread Tolerance Class (TCTR) | H7 |
| Thread Size | #10 - 24 |
