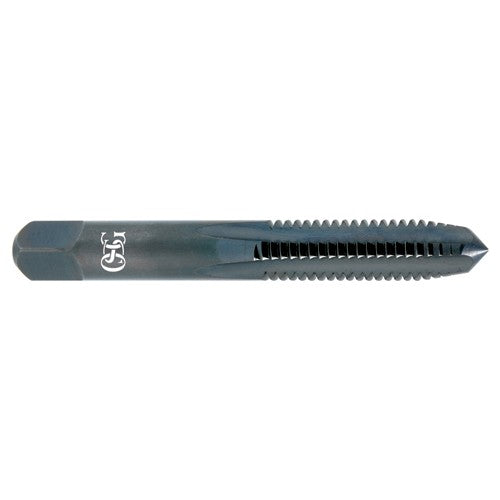

4-40 3Fl H1 HSS Straight Flute Taper Tap-Bright
Item #: TP101002100
Brand: OSG USA, Inc.
Model #: 1002100
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #4 |
| Tool Type | Hand Tap |
| Threads per Inch (TPI) | 40 |
| Chamfer | 5P |
| Thread Standard | NC |
| Coating | Bright |
| Overall Length (OAL) | 1-7/8″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 9/16″ |
| End Shape | Chamfer |
| Usable Length (LU) | 0.681″ |
| Style | Taper |
| Connection Diameter Machine Side (DCONMS) | 0.14″ |
| Shank Type | Straight |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Measurement Type | Wire Gage |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Series/List # | 102 |
| Cutting Edge Material | HSS |
| Thread Size | #4 - 40 |
| Thread Tolerance Class (TCTR) | H1 |
