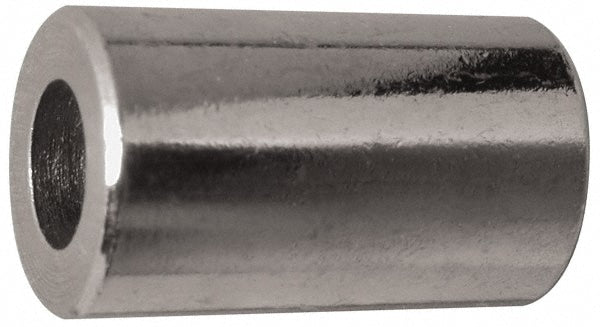

Brand: Made in USA / Part #: MS1045M01F21E
Item #: 77129500
Brand: Made in USA
Model #: MS1045M01F21E
Product Specifications
| Material | Brass |
| For Thread Size | M3.5 |
| Finish | Zinc |
| Overall Length | 23.0 mm |
| Overall Length (mm) | 23.00 |
| Inside Diameter (mm) | 3.50 to 4.20 |
| Outside Diameter | 6.00 |
| Outside Diameter | 6.0 mm |
| Inside Diameter Tolerance (mm) | 0.000 to 0.270 |
| Length Tolerance (mm) | -0.130 to 0.130 |
| Type | Female Unthreaded |
| Screw Size | M3.5 |
| System Of Measurement | Metric |
| Finish Coating | Zinc |
| Body Shape | Round |
| Fastener Standard | QQ-B-626 Comp 22; ASTM B633; Type 1 |
