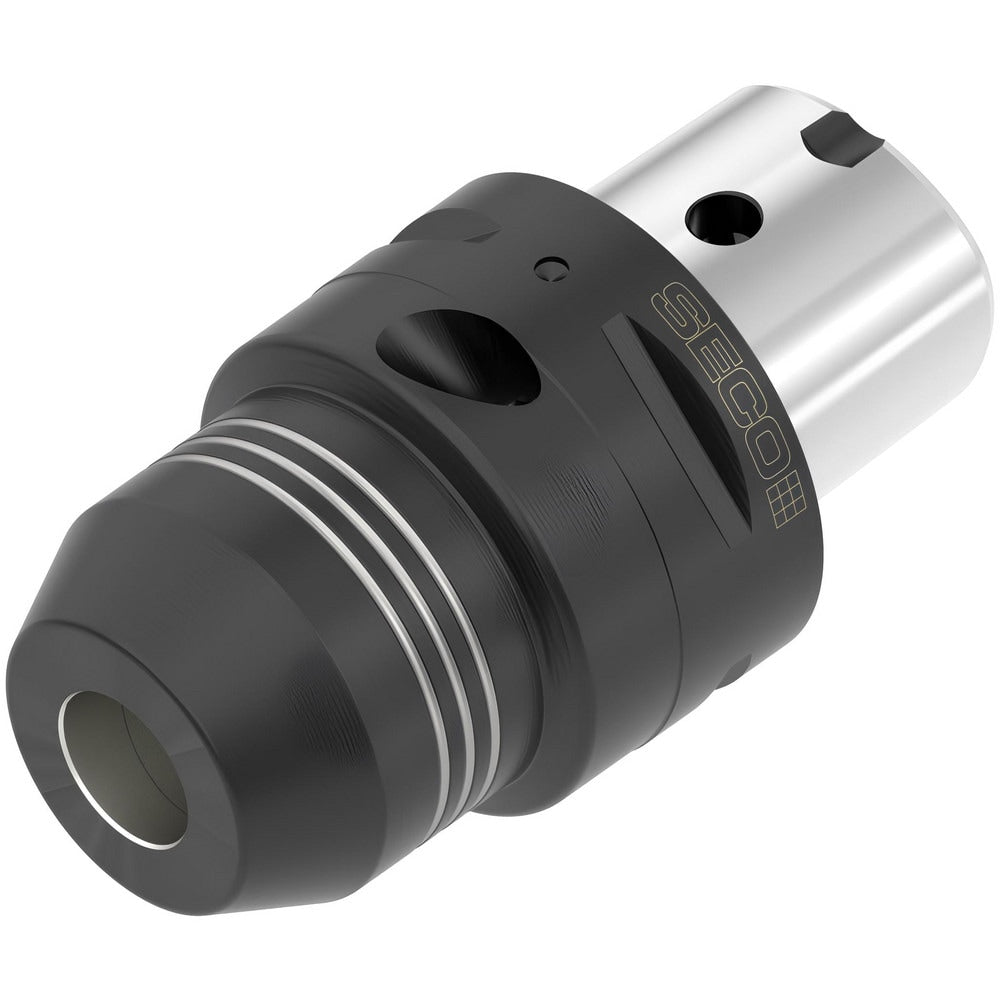

Brand: Seco / Part #: 10137146
Item #: 98752934
Brand: Seco
Model #: 10137146
Product Specifications
| Shank Type | Modular Connection |
| Connection Size | C6 |
| Taper Size | C6 |
| Chuck Hole Diameter | 12.00 |
| Nose Diameter (Mm) ( - 2 Decimals) | 42.00 |
| Projection (mm) | 53.000 |
| Clamping Depth (mm) | 47.50 |
| Balanced To Rpm | 25 |
| Through Coolant | Yes |
| Overall Length (mm) | 113.0000 |
| Series | HCR12 |
| Material | Steel |
| Cutting Direction | Neutral |
| Number Of Pieces | 1.000 |
| C-Projection Gage Line to Nose End (Decimal Inch) | 2.95 |
| Hole Diameter (Mm) ( - 0 Decimals) | 12.0000 |
| Body Diameter (Decimal Inch) | 2.4606 |
