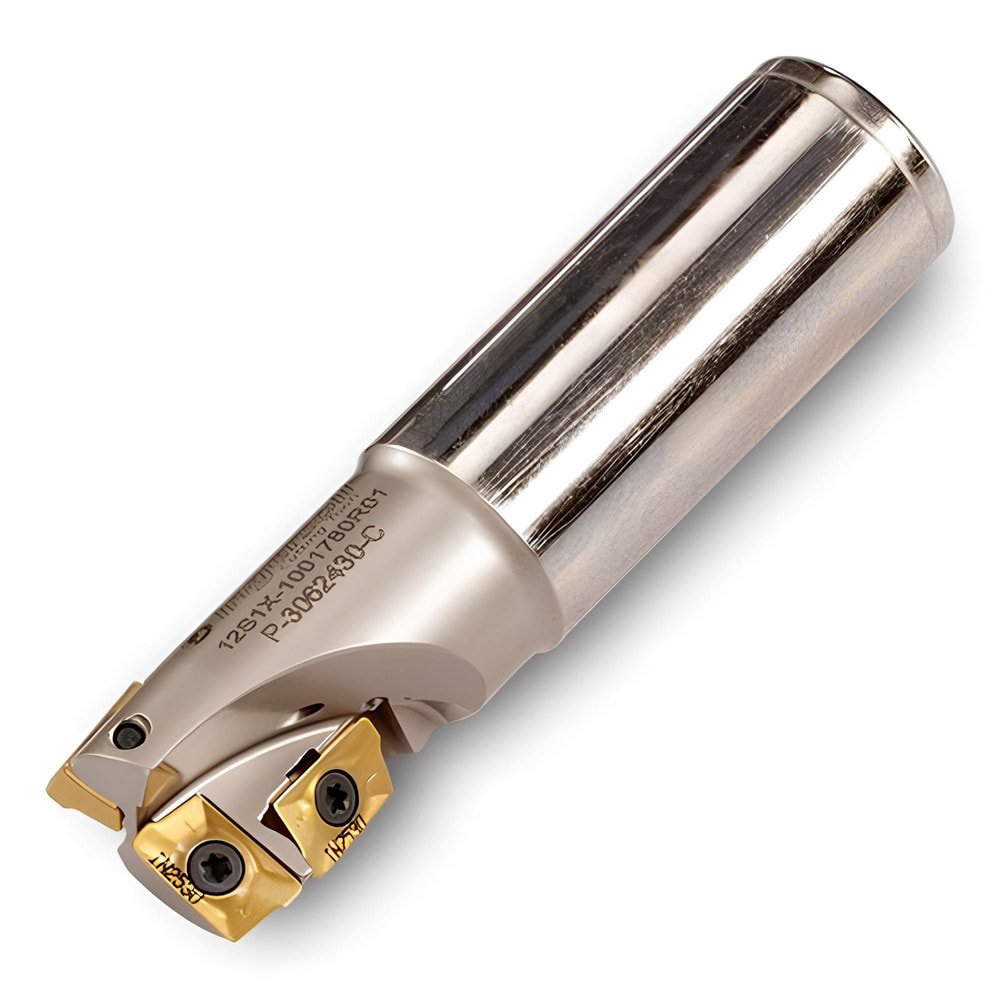

Brand: Ingersoll Cutting Tools / Part #: 3024847
Item #: 92880491
Brand: Ingersoll Cutting Tools
Model #: 3024847
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Minimum Cutting Diameter (Inch) | 1 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Depth of Cut (mm) | 22.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.8700 |
| Cutter Style | 12S1X |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Maximum Ramping Angle | 9 ? |
| Insert Holding Method | Screw |
| Overall Length (mm) | 101.6000 |
| Overall Length (Decimal Inch) | 4.0000 |
| Tool Material | Steel |
| Series | 12S1X |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.4000 |
| Shank Length (mm) | 60.960 |
| Head Length (Decimal Inch) | 1.6000 |
| Head Length (mm) | 40.64 |
| Tool Application | Facing; Plunging; Pocketing; Shouldering; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Rake | Positive |
| Complete Insert Compatibility | AOxT1204.. |
| Insert Compatibility | AOxT1204.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| Manufacturers Catalog Number | 12S1X-1001780R01 |
| Usable Length (mm) | 40.640 |
| Number Of Flutes | 2 |
| Usable Length (Decimal Inch) | 1.6000 |
| Number Of Cutter Inserts | 1 |
| Coolant Through | Yes |
