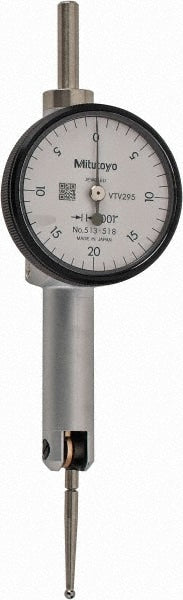

Brand: Mitutoyo / Part #: 513-518-10T
Item #: 97564009
Brand: Mitutoyo
Model #: 513-518-10T
Product Specifications
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Maximum Measurement (Decimal Inch) | 0.0400 |
| Dial Reading | 0-20-0 |
| Accuracy (Decimal Inch) | 0.001000 |
| Indicator Style | Horizontal |
| Bearing Type | Jeweled |
| Dial Diameter (mm) | 29.20 |
| Dial Color | White |
| Dial Graduation (Decimal Inch) | 0.001000 |
| Mount Type | Dovetail |
| Calibrated | No |
| Attachments | Yes |
| Number of Contact Points Included | 3 |
| Contact Point Swivel Angle | 190 ? |
| Features | Dust and Oil Proof; O-Ring Seal; Carbide-Tipped; Glare-Free Crystal; No-Clutch Structure; Automatic Reversal; High-Impact Resistance; Durable; Scratch-Resistant |
| Series | 513 |
| Ball Diameter (Decimal Inch) | 0.0790 |
| Range Per Revolution (Decimal Inch) | 0.0400 |
| Style | Horizontal |
| Contents | (2) Contact Point; Inch Holding Bar; Swivel Clamp; Holding Rod; Stem |
