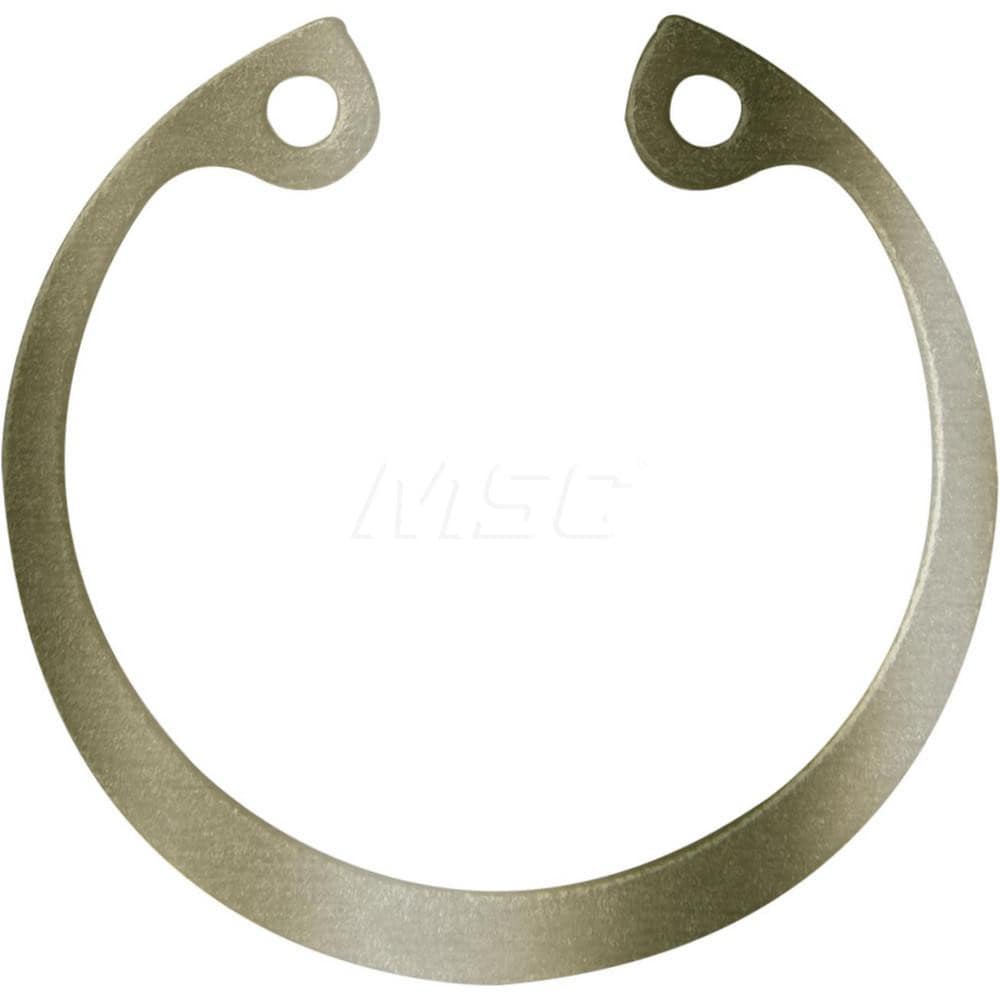

Brand: Rotor Clip / Part #: HOI-100ST ZD
Item #: 32909871
Brand: Rotor Clip
Model #: HOI-100ST ZD
Product Specifications
| Ring Type | Retaining Ring |
| Groove Diameter | 1.066 |
| Groove Diameter Tolerance | +/-.003 |
| Free Diameter | 1.081 in |
| Free Outside Diameter | 1.081 |
| Bore Diameter | 1.000 |
| Material | Spring Steel |
| Material Grade | 1060 |
| Finish | Yellow Zinc Chromate |
| Groove Width | .046 |
| Groove Width Tolerance | +.003/-.000 |
| Groove Depth | .033 |
| Ring Thickness | .042 |
| Ring Thickness Tolerance | +/-.002 |
| Thrust Load Capacity | 3147 |
| Hardness | scale 30N; Rockwell hardness 66-71 |
