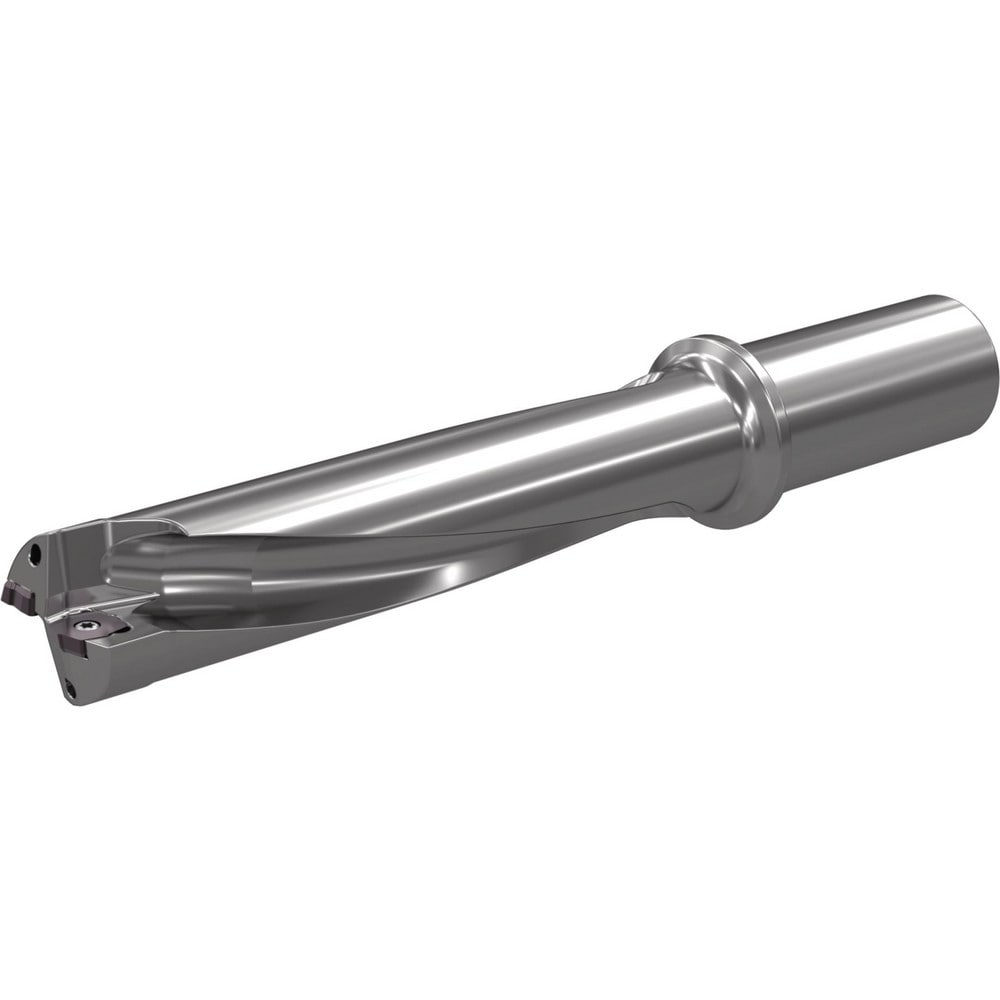

Brand: Widia / Part #: 5537870

Brand: Widia / Part #: 5537870


Item #: 90981804
Brand: Widia
Model #: 5537870

Product Specifications

Maximum Drill Depth 1.9860 in
Drill Depth by Diameter Ratio 4xD
Maximum Depth of Cut (mm) 50.45
Shank Type Weldon Flat
Shank Diameter (mm) 20.0000
Shank Diameter (Decimal Inch) 0.7874
Cutting Direction Right Hand
Drill Body Length to Flange (mm) 69.00
Toolholder Style TCF
Nose Diameter (Mm) ( - 2 Decimals) 12.50
Overall Length (mm) 119.4500
Overall Length 119.45
Through Coolant Yes
Series Top Cut 4
Flute Length (mm) 65.50
Shank Length (mm) 50.000
Gage Length (mm) 69.45
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Number of Shank Flats 1
Flute Type Variable Index
Maximum Cutting Diameter (mm) 12.50
Projection (mm) 69.450
Number Of Flutes 2
Coolant Through Yes
$348.59
