Brand: Widia / Part #: 2832247
Item #: 99751687
Brand: Widia
Model #: 2832247

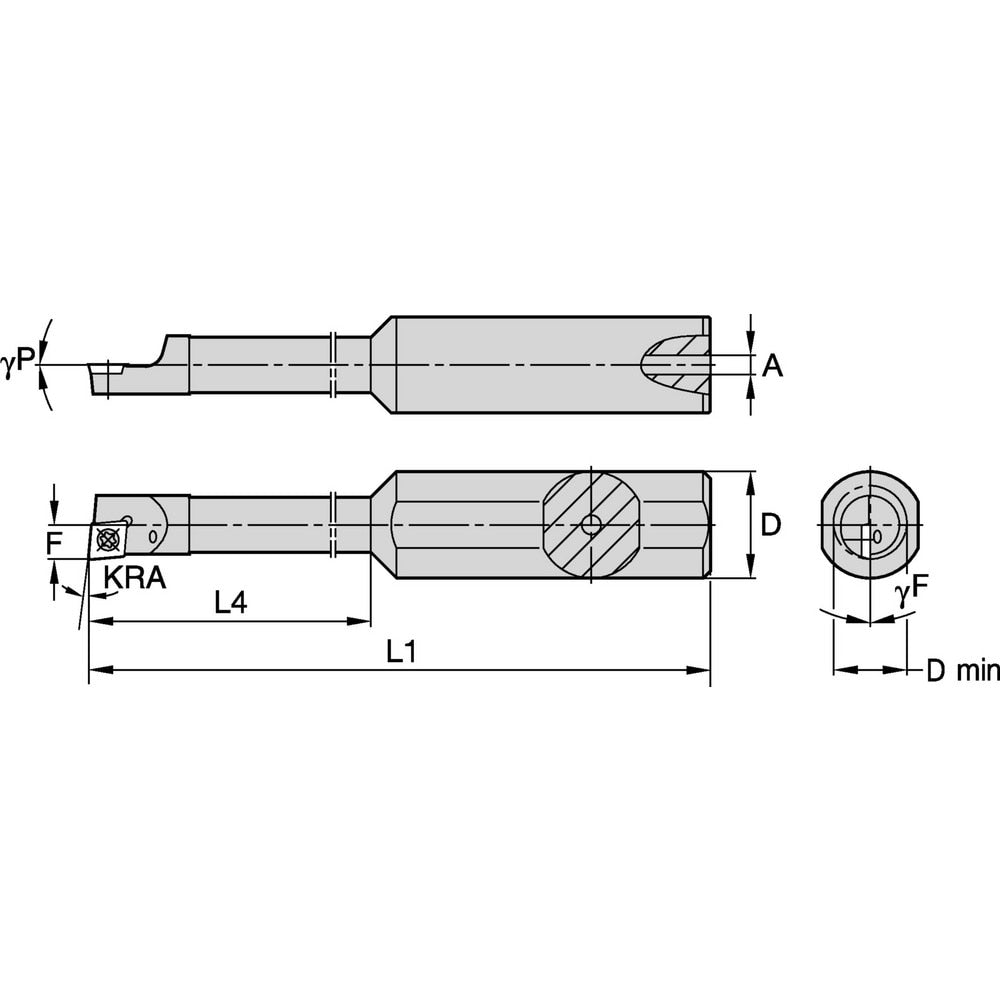

Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 0.2080 |
| Maximum Bore Depth (Decimal Inch) | 0.8750 |
| Maximum Bore Depth (Inch) | 7/8 |
| Toolholder Style | CCBI |
| Tool Material | Carbide |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 2.3750 |
| Overall Length (Inch) | 2-3/4 |
| Compatible Insert Size Code | CD..120605 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Left Hand |
| Rake Angle | 0.000 |
| Lead Angle | -5.000 |
| Series | CCBI STEPPED |
| Insert Inscribed Circle (Inch) | 5/32 |
| Insert Inscribed Circle (Decimal Inch) | 0.1563 |
| Insert Inscribed Circle (mm) | 3.97 |
| Compatible Insert Thickness (Decimal Inch) | 0.0400 |
| Compatible Insert Thickness (mm) | 1.02 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3540 |
| Center to Cutting Edge (Decimal Inch) | 0.1040 |
| Primary Workpiece Material | Universal |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Neck Diameter (Decimal Inch) | 0.1950 |
| Insert Thickness (Decimal Inch) | 0.0400 |
| Coolant Hole Diameter (Decimal Inch) | 0.1250 |
| Number of Inserts Included in Order | 0 |
| Manufacturers Catalog Number | CCBI1805008755L |
| Radial Rake | 5 |
| Coolant Through | Yes |
