Brand: Widia / Part #: 2010148
Item #: 02809739
Brand: Widia
Model #: 2010148
Product Specifications
| Minimum Bore Diameter (mm) | 20.000 |
| Maximum Bore Depth (mm) | 112.00 |
| Toolholder Style | SDQCL |
| Tool Material | Carbide |
| Shank Diameter (mm) | 16.0000 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 200.0000 |
| Compatible Insert Size Code | DC..070204 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Left Hand |
| Rake Angle | -5.000 |
| Lead Angle | 108.000 |
| Series | E-SDQC |
| Insert Inscribed Circle (Inch) | 1/4 |
| Compatible Insert Thickness (Decimal Inch) | 0.0938 |
| Compatible Insert Thickness (mm) | 2.38 |
| Multi-use Tool | Yes |

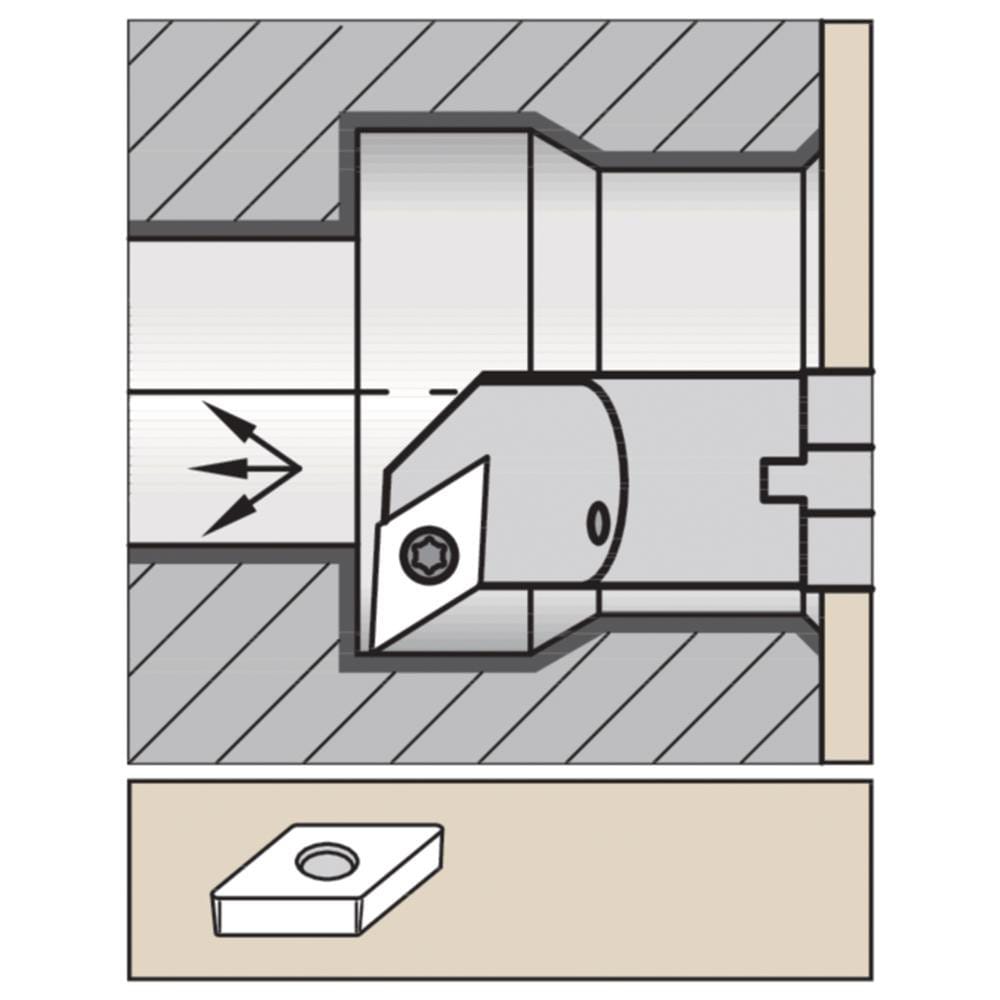

| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (mm) | 19.00 |
| Center to Cutting Edge (mm) | 11.00 |
| Primary Workpiece Material | Universal |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Coolant Hole Diameter (mm) | 5.51 |
| Number of Inserts Included in Order | 0 |
| Manufacturers Catalog Number | E16RSDQCL07 |
| Radial Rake | 0 |
| Coolant Through | Yes |
