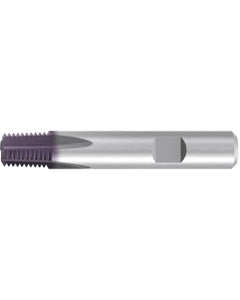

3/8-18 GFI Style Pipe Thread - TICN Thread Mill
Item #: ER4516608
Brand: EMUGE-FRANKEN
Model #: GFT53116.5766
| Product Specifications | |
|---|---|
| Thread Size | 3/8″ |
| Coolant Supply Property (CSP) | External |
| Threads per Inch (TPI) | 18 |
| Shank Type | HB |
| Thread Diameter Size (TDZ) | 3/8″ |
| Coating | TiCN |
| Thread Standard | | NPT | |
| Application | | Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Cutting Edge Material | Carbide |
| Overall Length (OAL) | 3-1/4″ |
| Usable Length (LU) | 0.58″ |
| Flute Count (NOF) | 4 |
| Series/List # | A504524 |
