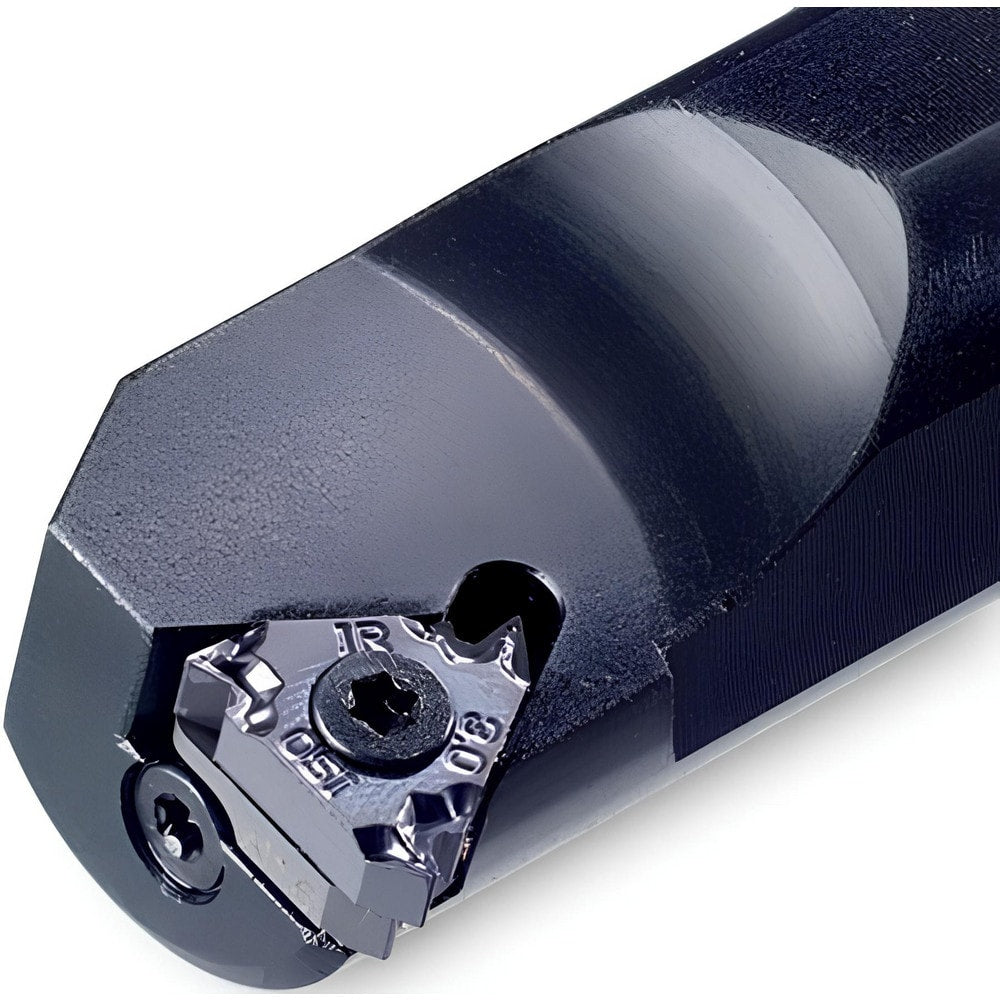

Brand: Ingersoll Cutting Tools / Part #: 3820129
Item #: 96890074
Brand: Ingersoll Cutting Tools
Model #: 3820129
Product Specifications
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | 06 |
| Shank Width/Diameter (Inch) | 1-1/2 |
| Toolholder Style | SIR-C |
| Insert Compatibility | 06IR |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Insert Holding Method | Screw |
| Shank Length (Inch) | 4 |
| Overall Length (Inch) | 4 |
| Minimum Bore Diameter (Decimal Inch) | 0.2500 |
| Series | SIR-C |
| Multi-use Tool | Yes |
| Cutting Tool Application | Threading |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9200 |
| Center to Cutting Edge (Decimal Inch) | 0.1700 |
| Insert Inscribed Circle (Inch) | 5/32 |
| Primary Workpiece Material Code | P; S; H; K; M; N; O |
| Toolholder Material | Carbide |
| Style | SIR-C |
| D -In-- | 1.5000 |
| Coolant Through | Yes |
