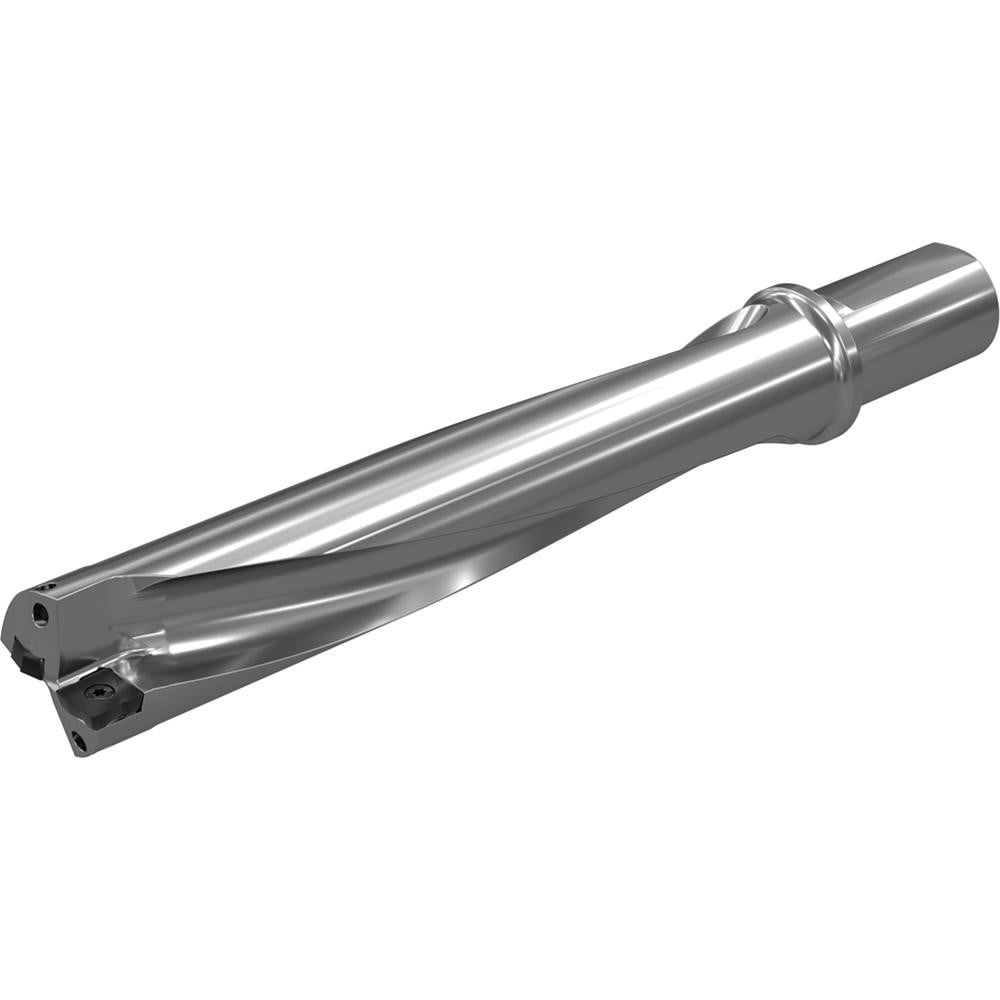

Brand: Widia / Part #: 5578313

Brand: Widia / Part #: 5578313


Item #: 90983271
Brand: Widia
Model #: 5578313

Product Specifications

Maximum Drill Depth 2.3980 in
Drill Depth by Diameter Ratio 4xD
Maximum Depth of Cut (Decimal Inch) 2.3980
Shank Type Weldon Flat
Shank Diameter (Inch) 3/4
Shank Diameter (Decimal Inch) 0.7500
Cutting Direction Right Hand
Drill Body Length to Flange (Decimal Inch) 3.1870
Toolholder Style TCF
Nose Diameter (Decimal Inch - 4 Decimals) 0.5940
Overall Length (Decimal Inch) 5.1771
Overall Length 5.18
Through Coolant Yes
Series Top Cut 4
Flute Length (Decimal Inch) 3.0510
Shank Length (Decimal Inch) 1.9685
Gage Length (Decimal Inch) 3.2086
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Coolant Hole Thread Type NPT
Coolant Hole Thread Size (Inch) 1/8-27
Number of Shank Flats 1
Flute Type Variable Index
Maximum Cutting Diameter (Decimal Inch) 0.5940
Number Of Flutes 2
Projection (Decimal Inch) 3.2086
Coolant Through Yes
$351.52
