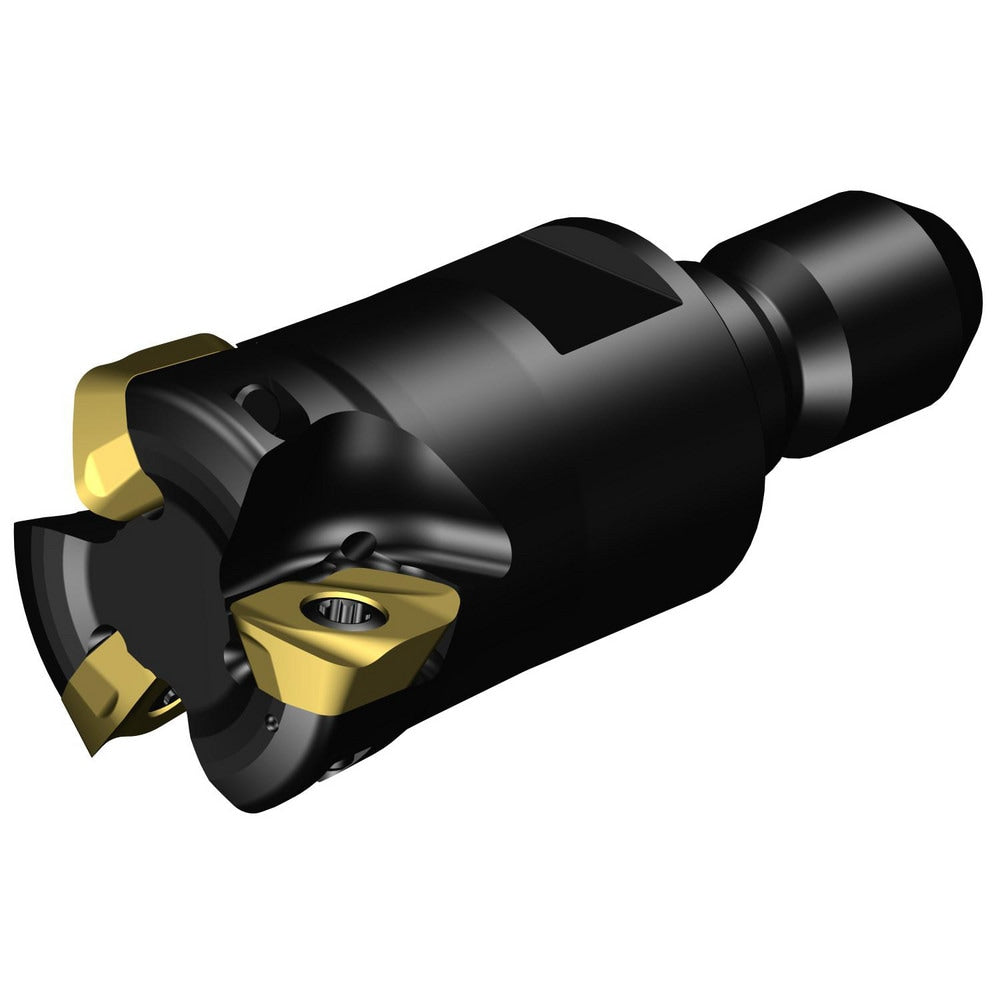

Brand: Sandvik Coromant / Part #: 8352802
Item #: 67613307
Brand: Sandvik Coromant
Model #: 8352802
Product Specifications
| Cutting Diameter (mm) | 14.35 |
| Cutting Diameter (Decimal Inch) | 0.5650 |
| Maximum Depth of Cut (Decimal Inch) | 0.2087 |
| Maximum Depth of Cut (mm) | 5.30 |
| Shank Diameter (mm) | 20.8000 |
| Compatible Insert Size Code | 0804 |
| Maximum Ramping Angle | 5.7 |
| Cutter Style | MH20-R..Txx |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Series | CoroMill MH29 |
| Maximum RPM | 20900.000 |
| Tool Application | Face Milling |
| Tool Performance | High Performance |
| Complete Insert Compatibility | CoroMill MH20 -0804 (MH20-080425) |
| Manufacturers Catalog Number | MH20-R025T12-08M |
| Shank Diameter (Decimal Inch) | 0.8189 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
