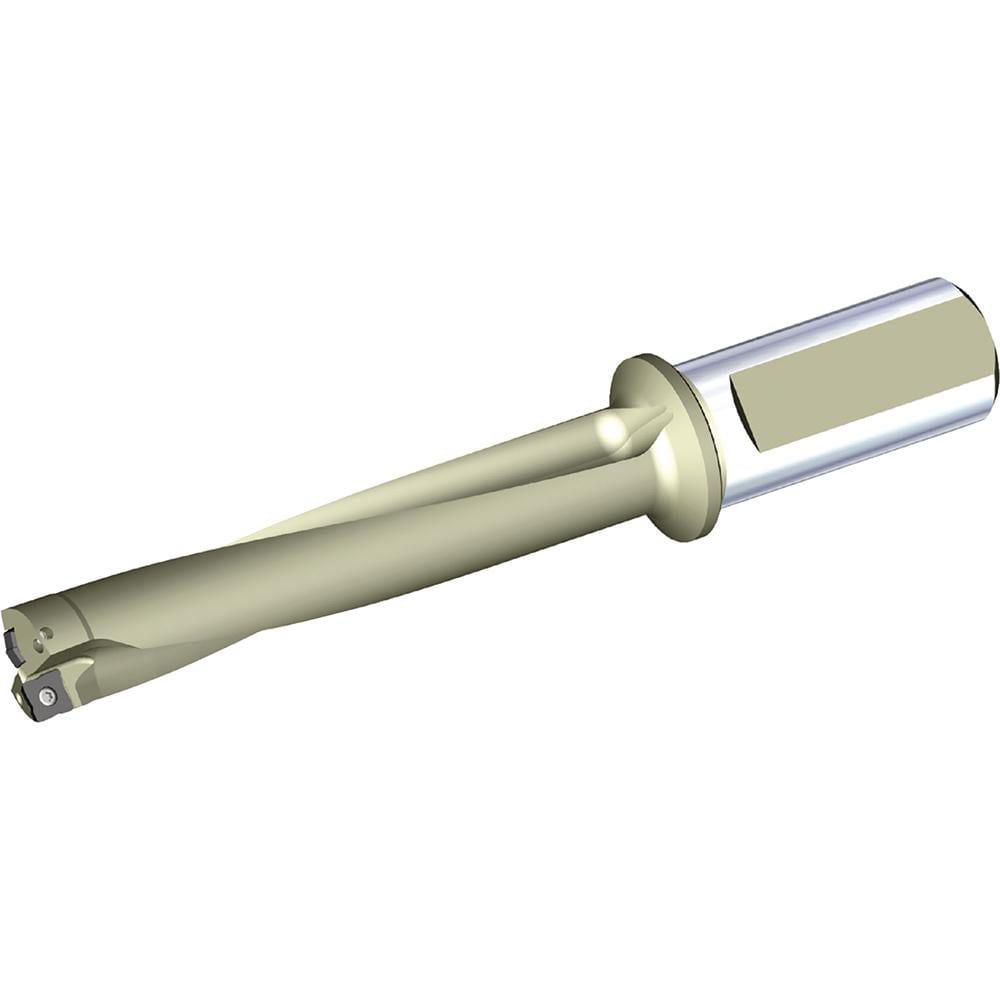

Brand: Widia / Part #: 5578648

Brand: Widia / Part #: 5578648


Item #: 90212093
Brand: Widia
Model #: 5578648

Product Specifications

Maximum Drill Depth 8.9210 in
Drill Depth by Diameter Ratio 5xD
Maximum Depth of Cut (mm) 226.59
Shank Type Weldon Flat
Shank Diameter (mm) 40.0000
Shank Diameter (Decimal Inch) 1.5748
Cutting Direction Right Hand
Drill Body Length to Flange (mm) 272.00
Toolholder Style TCF
Nose Diameter (Mm) ( - 2 Decimals) 45.00
Overall Length (mm) 343.5900
Overall Length 343.59
Through Coolant Yes
Series Top Cut 4
Flute Length (mm) 267.10
Shank Length (mm) 70.000
Gage Length (mm) 273.59
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Number of Shank Flats 1
Flute Type Variable Index
Maximum Cutting Diameter (mm) 45.00
Projection (mm) 273.590
Number Of Flutes 2
Coolant Through Yes
$571.22
