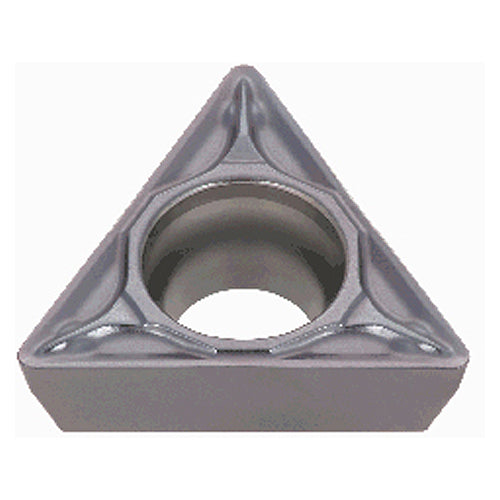

TPMT 221 PS GH730
Item #: TG556821019
Brand: Tungaloy
Model #: 6821019
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Tool Type | Turn Positive Inserts |
| Application | | Inserts | |
| Fixing Hole Diameter (D1) | 0.134″ |
| Insert Style | TPMT |
| Min D.O.C. | 0.0197″ |
| Corner Radius (RE) | 0.016″ |
| Depth of Cut Maximum (APMX) | 0.0984″ |
| Insert Size | 221 |
| Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Cutting Edge Length (L) | 0.433″ |
| Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 1/8″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide |
| Chip Breaker Type | PS |
| Coating | TiCNO |
| Measurement Type | Inch |
| Grade | GH730 |
| Body Material | Carbide |
