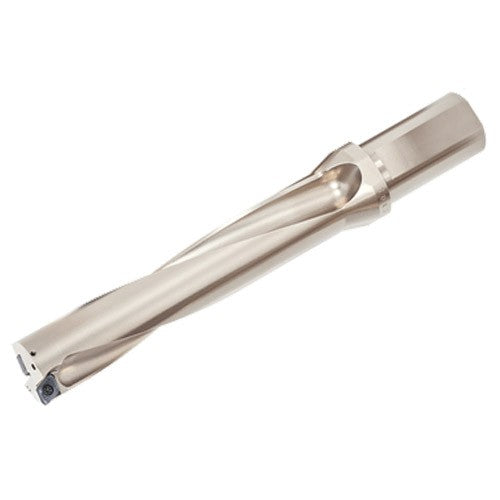

TDX270F32-5
Item #: TG256718401
Brand: Tungaloy
Model #: 6718401
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 27 mm |
| Functional Length (LF) | 159 mm |
| Usable Length (LU) | 135.7 mm |
| Overall Length (OAL) | 218.7 mm |
| Application | | General Drilling | |
| Flange Diameter (DF) | 40 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Point Length (PL) | 0.73 mm |
| Tool Type | Indexable Insert Drills |
| Measurement Type | Metric |
| Shank Length (LS) | 59 mm |
| Master Insert Identification (MIID) | XPMT08T308R-DJ |
| Length Chip Flute (LCF) | 139.7 mm |
| Body Material | Steel |
