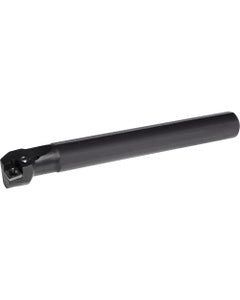

A12QPCLNR3 Right-Hand, Negative Rake, Coolant-Through Boring Bar
Item #: KY96THC89427
Brand: Kyocera Precision Tools
Model #: THC89427
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 7″ |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 7″ |
| Rake Angle Radial (GAMF) | -17 Degrees |
| Head Length (LH) | 1.4567″ |
| Series/List # | GPBB |
| Shank Height (H) | 0.7098″ |
| Body Material | Steel |
| Shank Length (LS) | 5.5433″ |
| Style | A...PCLN |
| Master Insert Identification (MIID) | | CNMG33 | CNGG33 | |
| Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 1.0598″ |
| Weight of Item (WT) | 0.9 |
| Cutting Direction (HAND) | Right Hand |
