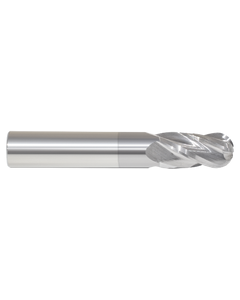

7mm-4FL-SE-REG-BN (19mm LOC) TiCN
Item #: MW21223001470C
Brand: Monster Tool Company
Model #: 223-001470C
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 7 mm |
| Application | | Profiling | Rampdown | Profile Cutting | Radiusing | Radius Slotting | |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Grade | C-2 Sub-Micron |
| Depth of Cut Maximum (APMX) | 19 mm |
| Length Group | Regular |
| Overall Length (OAL) | 63 mm |
| End Shape | Ballnose |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.2756″ |
| Coating | TiCN |
| Series/List # | 223 |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees |
| Center Cutting | Yes |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Single / Double End | Single End |
