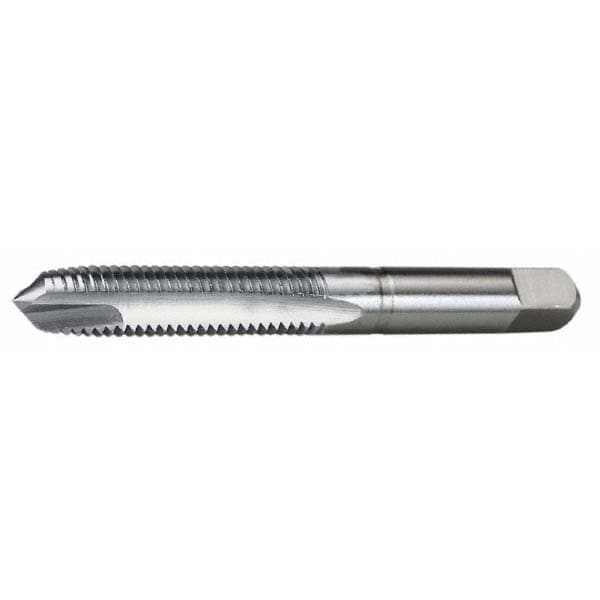

Brand: Widia / Part #: 2750017
Item #: 70733605
Brand: Widia
Model #: 2750017
Product Specifications
| Thread Size (mm) | M2.5x0.45 |
| Number Of Flutes | 2 |
| Chamfer | Plug |
| Thread Limit | D3 |
| Class Of Fit | 6H |
| Coating/Finish | Uncoated |
| Threads per Inch | 0 |
| Material | High Speed Steel |
| Coolant Through | Yes |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 0.5000 |
| Thread Pitch (mm) | 0.45 |
| Thread Standard | Metric Coarse |
| Thread Length (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 1.8120 |
| Cnc Shank | Yes |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Application | Through-Hole Threading |
| Tapping Depth (Decimal Inch) | 0.5000 |
| Square Length (Decimal Inch) | 0.1875 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | 5351/2351 |
| Style | Plug |
