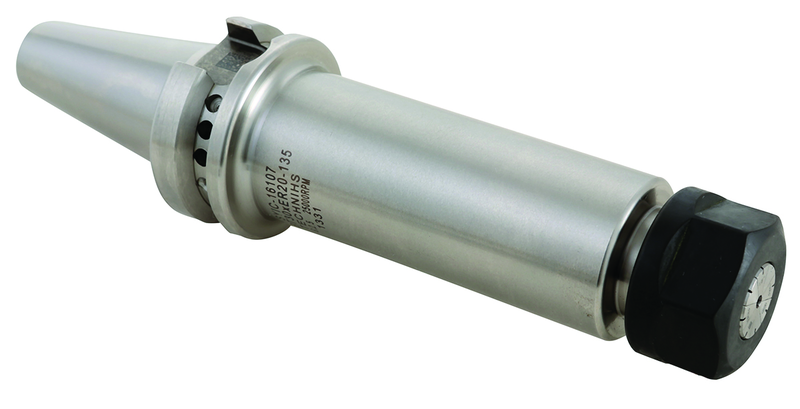

BT30 x ER25-70 - Collet Chuck

Item #: TE1216109
Manufacturer: Techniks
Mfg #: 16109

Technical Specifications:
*Brand Name: Techniks *Capacity: ER25 *Chuck Size: BT30 *Collets Included: No *Coolant Supply: Coolant-thru Spindle with Coolant Capable Retention Knob, sold separately *Head Length/Projection: 70mm *Model Number: 16109 *Mount: BT30 *Nose Diameter: 1.66 *Nut Diameter: 1.65 *Overall Length: 7.42 *Size/Range: .039 - .75 *Spindle Interface: BT30 *Weight: 1.5 lbs *Wrench Number: TE1204615

Description:
*Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance *They are individually lab tested for accuracy and balance and come with their individual performance report *Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket *

Shipping Info:
*Actual Weight - 1.5000 *Dimensions - Height: 5.00 Length: 3.00 Width: 3.00
