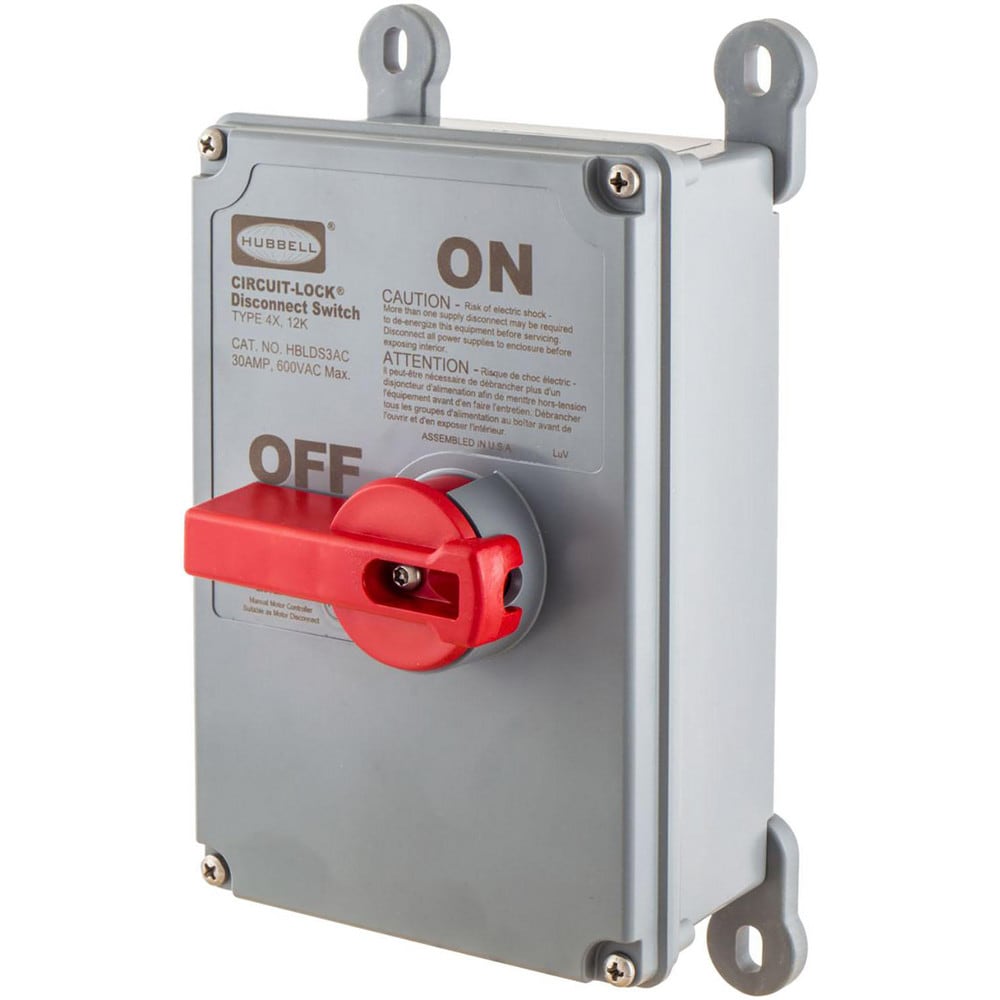

Cam & Disconnect Switches; Enclosure Type: Enclosed; Fused: Non-Fused; Amperage: 30.0000; Voltage: 600V AC; Horsepower at 1 Phase: 1 @ 120V AC, 2.5 @ 220-277V AC, 5 @ 480V AC; Horsepower at 3 Phase: 5 @ 208-240V AC, 10 @ 480V AC, 10 @ 600V AC; Contact For
Item #: 61087557
Brand: Hubbell Wiring Device-Kellems
Model #: HBLDS33ACNK
Product Specifications
| Enclosure Type | Enclosed |
| Fused | Non-Fused |
| Amperage | 30.0000 |
| Voltage | 600V AC |
| Horsepower at 1 Phase | 1 @ 120V AC, 2.5 @ 220-277V AC, 5 @ 480V AC |
| Horsepower at 3 Phase | 5 @ 208-240V AC, 10 @ 480V AC, 10 @ 600V AC |
| Contact Form | 3PST |
| Number Of Poles | 3 |
| Overall Height (Decimal Inch) | 4.6000 |
| Overall Width (Decimal Inch - 4 Decimals) | 5.5000 |
| Overall Depth (Mm) | 8.5 |
| Ingress Protection Rating | IP69K |
| Standards | UL Listed; CM |
| Nema Rating | 4X; 12K |
| Number Of Phases | 2 |
| UNSPSC Code | 39122233 |
| Enclosure Type | Enclosed |
| Fused | Non-Fused |
| Amperage | 30.0000 |
| Voltage | 600V AC |
| Horsepower at 1 Phase | 1 @ 120V AC, 2.5 @ 220-277V AC, 5 @ 480V AC |
| Horsepower at 3 Phase | 5 @ 208-240V AC, 10 @ 480V AC, 10 @ 600V AC |
| Contact Form | 3PST |
| Number Of Poles | 3 |
| Overall Height (Decimal Inch) | 4.6000 |
| Overall Width (Decimal Inch - 4 Decimals) | 5.5000 |
| Overall Depth (Mm) | 8.5 |
| Ingress Protection Rating | IP69K |
| Standards | UL Listed; CM |
| Nema Rating | 4X; 12K |
| Number Of Phases | 2 |
| UNSPSC Code | 39122233 |
| MSC Part # | 61087557 |
| Mfr Part # | HBLDS33ACNK |
| Country of Origin Country of Origin is subject to change | Puerto Rico |
