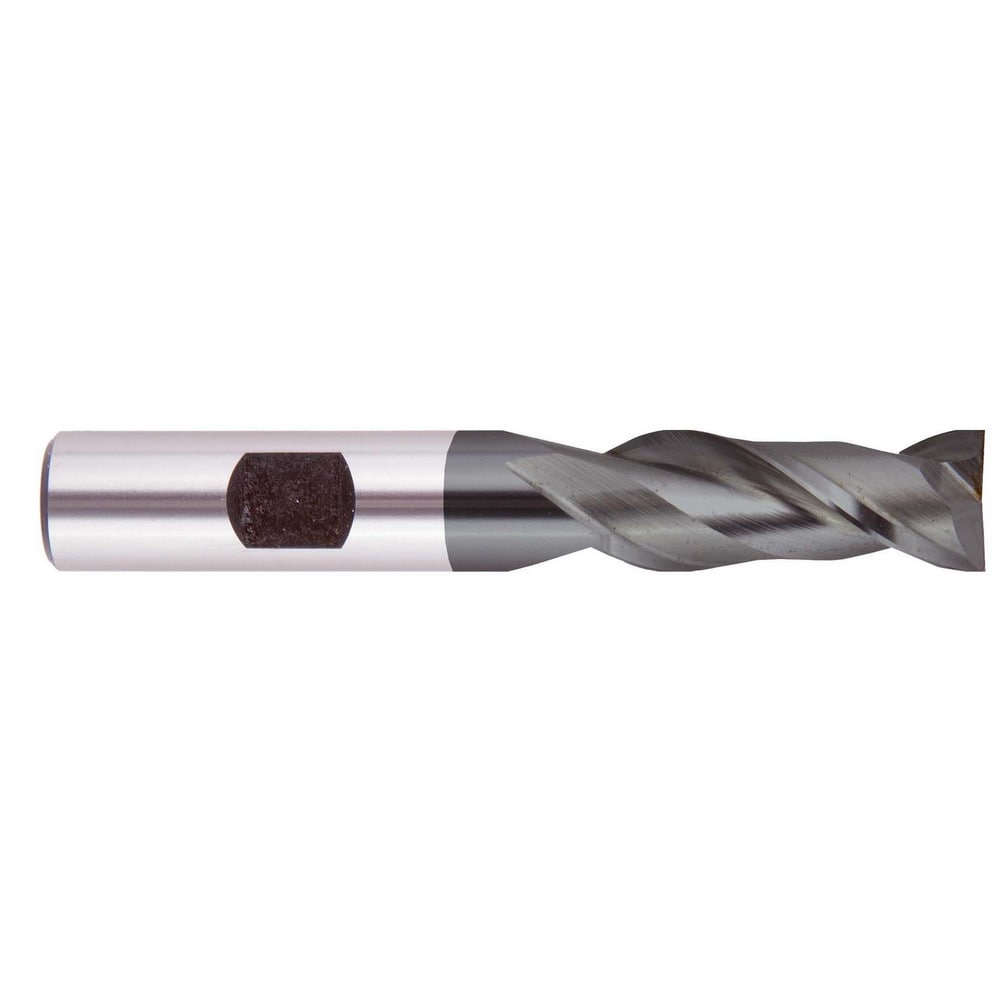

Square End Mill: 1/4" Dia, 1/2" LOC, 2 Flute, High Speed Steel
Item #: 58817636
Brand: Regal Cutting Tools
Model #: 050506AM88
Product Specifications
| Mill Diameter (Decimal Inch) | 0.2500 |
| Mill Diameter (Inch) | 1/4 |
| Number Of Flutes | 2 |
| End Mill Material | High Speed Steel |
| Length of Cut (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 1/2 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 2.4375 |
| Overall Length (Inch) | 2-7/16 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Coating/Finish | AlTiN |
| Variable Helix | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Length Type | Regular |
| Length Of Cut Range (Decimal Inch) | 0.5000 - 0.6000 |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Mill Diameter (Inch) | 1/4 |
| Number Of Flutes | 2 |
| End Mill Material | High Speed Steel |
| Length of Cut (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 1/2 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 2.4375 |
| Overall Length (Inch) | 2-7/16 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Coating/Finish | AlTiN |
| Variable Helix | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Length Type | Regular |
| Length Of Cut Range (Decimal Inch) | 0.5000 - 0.6000 |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| MSC Part # | 58817636 |
| Mfr Part # | 050506AM88 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
