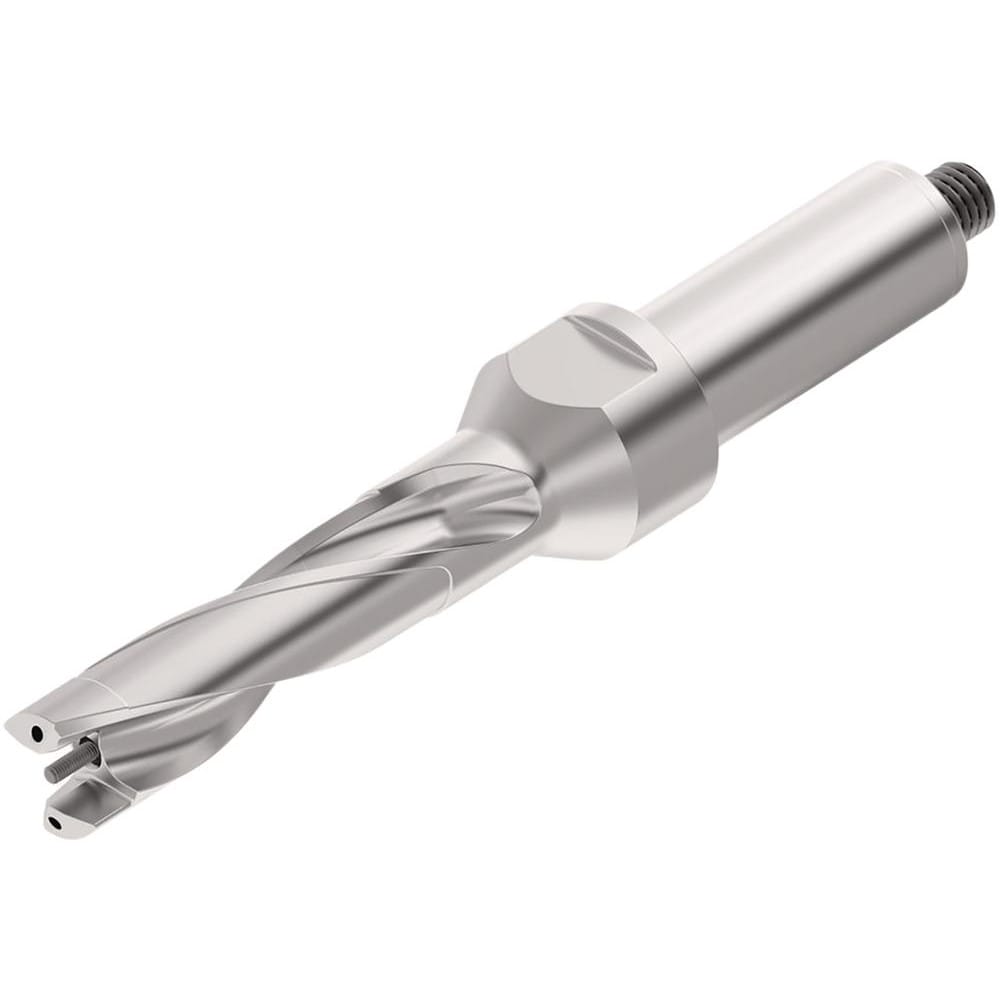

Replaceable-Tip Drills; Minimum Drill Diameter (mm): 23.00; Maximum Drill Diameter (mm): 24.00; Drill Depth by Diameter Ratio: 3xD; Maximum Drill Depth (mm): 96.90
Item #: 42013383
Brand: Kennametal
Model #: 7138103
Product Specifications
| Minimum Drill Diameter (mm) | 23.00 |
| Maximum Drill Diameter (mm) | 24.00 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 96.90 |
| Shank Type | Flange; Threaded; Straight |
| Insert Seat Size | 4 |
| Shank Diameter (mm) | 25.0000 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 80.00 - 100.00 |
| Compatible Insert Style | KSEM |
| Overall Length (mm) | 198.0000 |
| Series | KSEM ST-Line |
| Flute Length (mm) | 96.90 |
| Flute Length (Decimal Inch) | 3.8150 |
| Body Length (Decimal Inch) | 5.1181 |
| Body Length | 130.000 |
| Shank Length (mm) | 56.000 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Coating Classification | Uncoated |
| Number Of Flutes | 2 |
| UNSPSC Code | 23153308 |
| Coating/Finish | Uncoated |
