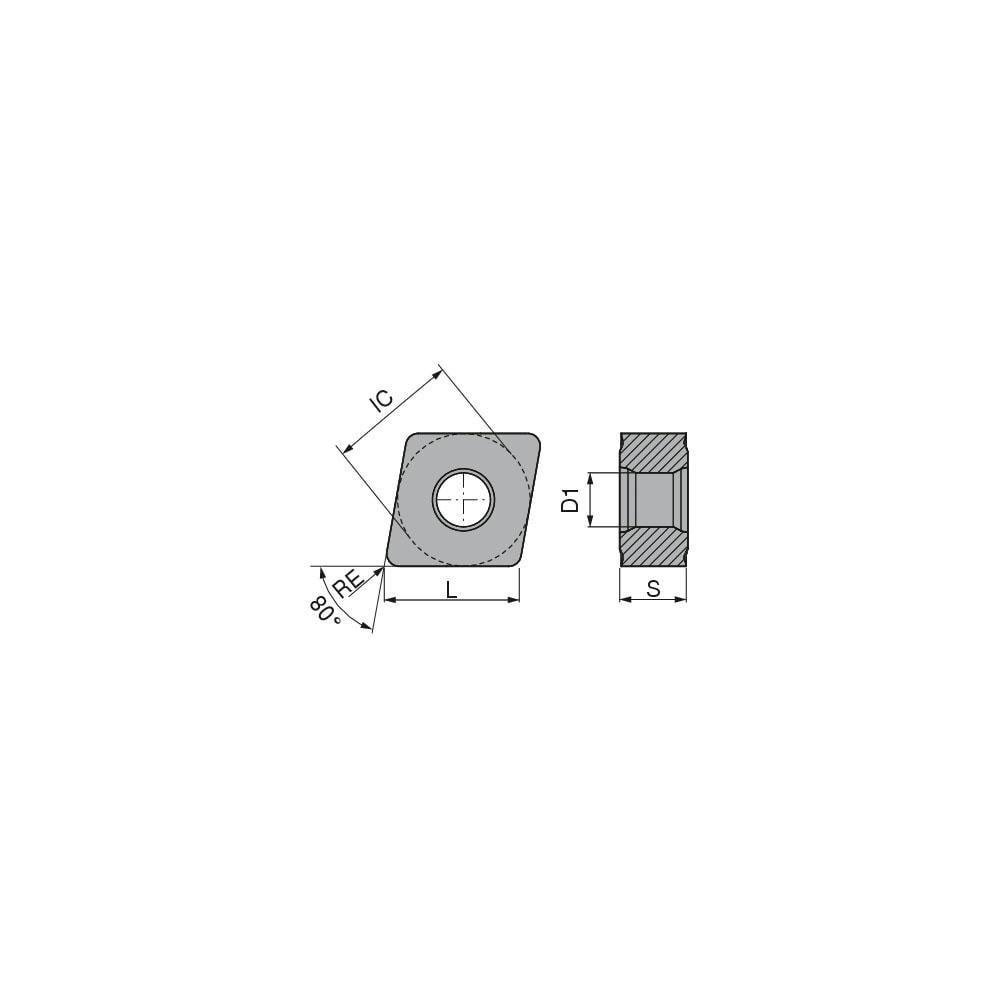

Turning Insert: CNMU444EN-M50 CTCP125, Carbide
Item #: 26280768
Brand: Ceratizit
Model #: 7641053400
Product Specifications
| ANSI Insert Code | CNMU444 |
| ISO Insert Code | CNMU120616 |
| Relief Angle | 0 |
| Insert Style | CNMU |
| Corner Radius (Decimal Inch) | 0.0630 |
| Included Angle | 80 |
| Manufacturer Grade | CTCP125 |
| Coating/Finish | TiCN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Series | CNMU |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Grade Characteristics | Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) - High Wear-Resistance to High Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Maximum Depth of Cut (Decimal Inch) | 0.5079 |
| Insert Holding Method | Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | CNMU 120616EN-M50 CTCP125 |
| Chip Breaker | M50 |
| ANSI Size Code | 444 |
| ISO Size Code | 120616 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 444 |
