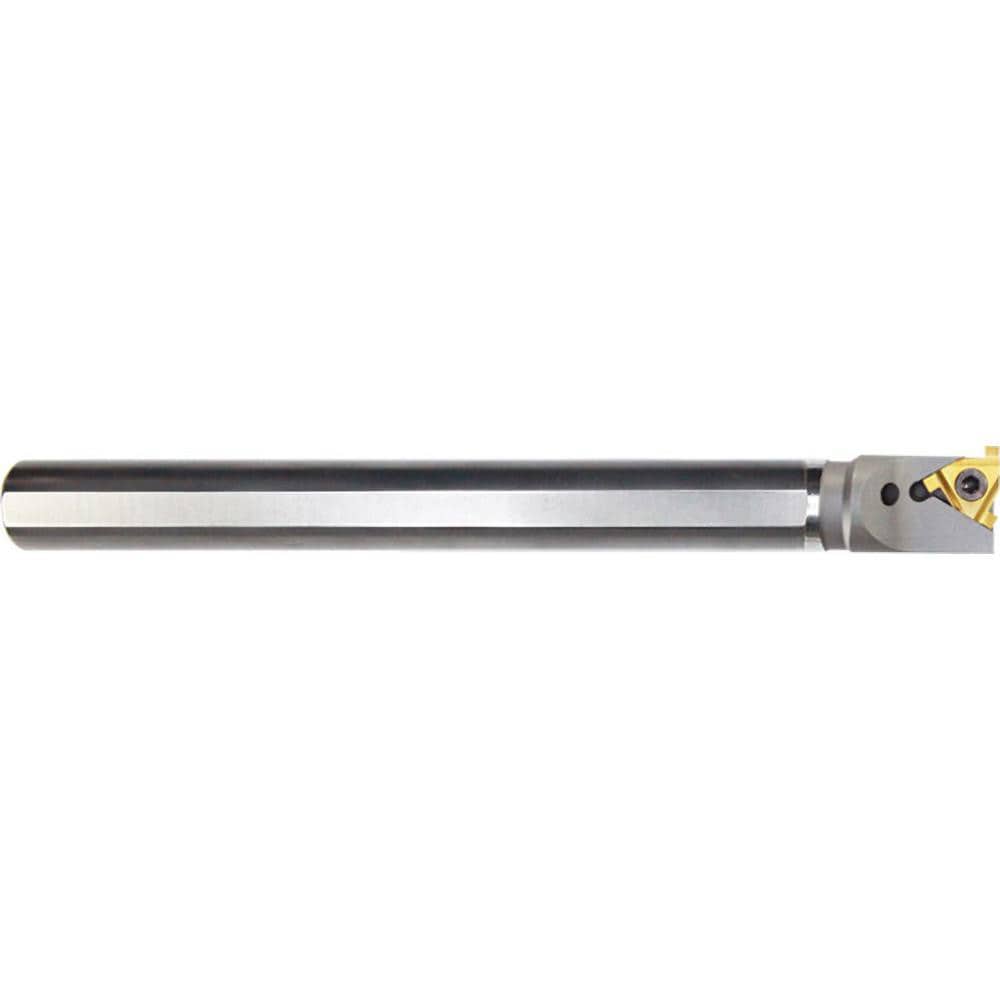

Indexable Grooving Toolholder: G-640-12-C 12, Right Hand, 0.1250" Max Groove Width
Item #: 09130162
Brand: Internal Tool
Model #: 26-1150
Product Specifications
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 16 |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0780 |
| Minimum Groove Width (Inch) | 1/32 |
| Minimum Groove Width (Decimal Inch) | 0.0310 |
| Toolholder Style | 26 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Maximum Groove Width (Inch) | 1/8 |
| Insert Holding Method | Screw |
| Insert Compatibility | 16 NR-NG?. |
| Compatible Insert Size Code | 16 |
| Shank Height (Decimal Inch) | 0.5000 |
| Series | 26 |
| Overall Length (Inch) | 12 |
| Overall Length (Decimal Inch) | 12 |
| Multi-use Tool | No |
| Minimum Hole Diameter (Decimal Inch) | 0.6400 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23153308 |
| Vibration Dampening | No |
| Mount Type | Screw |
| Manufacturers Catalog Number | 26-1150 |
| Toolholder Material | Carbide |
| Insert Hand | Right Hand |
| Complete Insert Compatibility | 16 NR-NG?. |
| Coolant Through | No |
