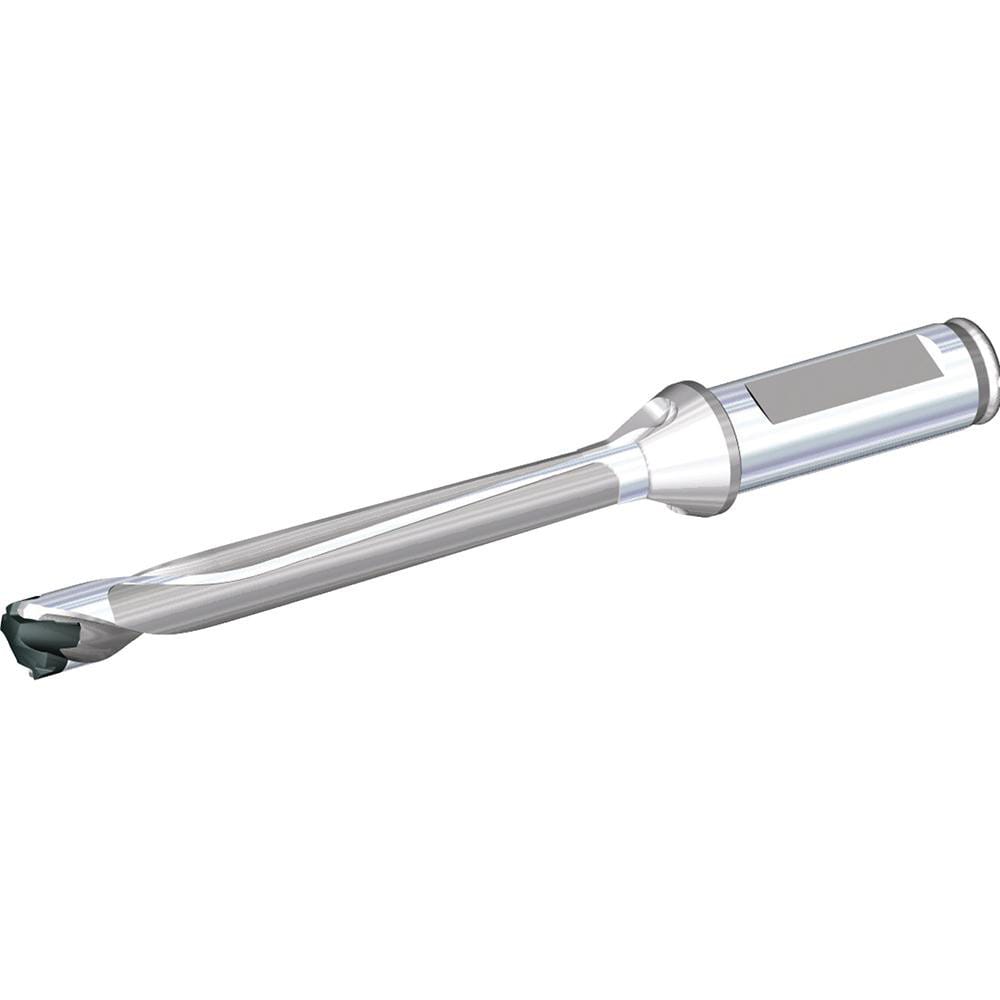

Brand: Widia / Part #: 4099081
Item #: 90227612
Brand: Widia
Model #: 4099081
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.9843 |
| Maximum Drill Diameter (Decimal Inch) | 1.0232 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 8.1887 |
| Shank Type | Flatted |
| Insert Style | TDM |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Seat Size | W34 |
| Tool Material | Steel |
| Compatible Insert Style | TDM |
| Compatible Insert Size Code | W34 |
| Overall Length (Decimal Inch) | 11.9547 |
| Series | TDM1 |
| Toolholder Style | TDM1 |
| Flute Length (Decimal Inch) | 9.5335 |
| Body Length (Decimal Inch) | 9.2500 |
| Shank Length (Decimal Inch) | 2.2047 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Tip Length (Decimal Inch) | 0.1783 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
