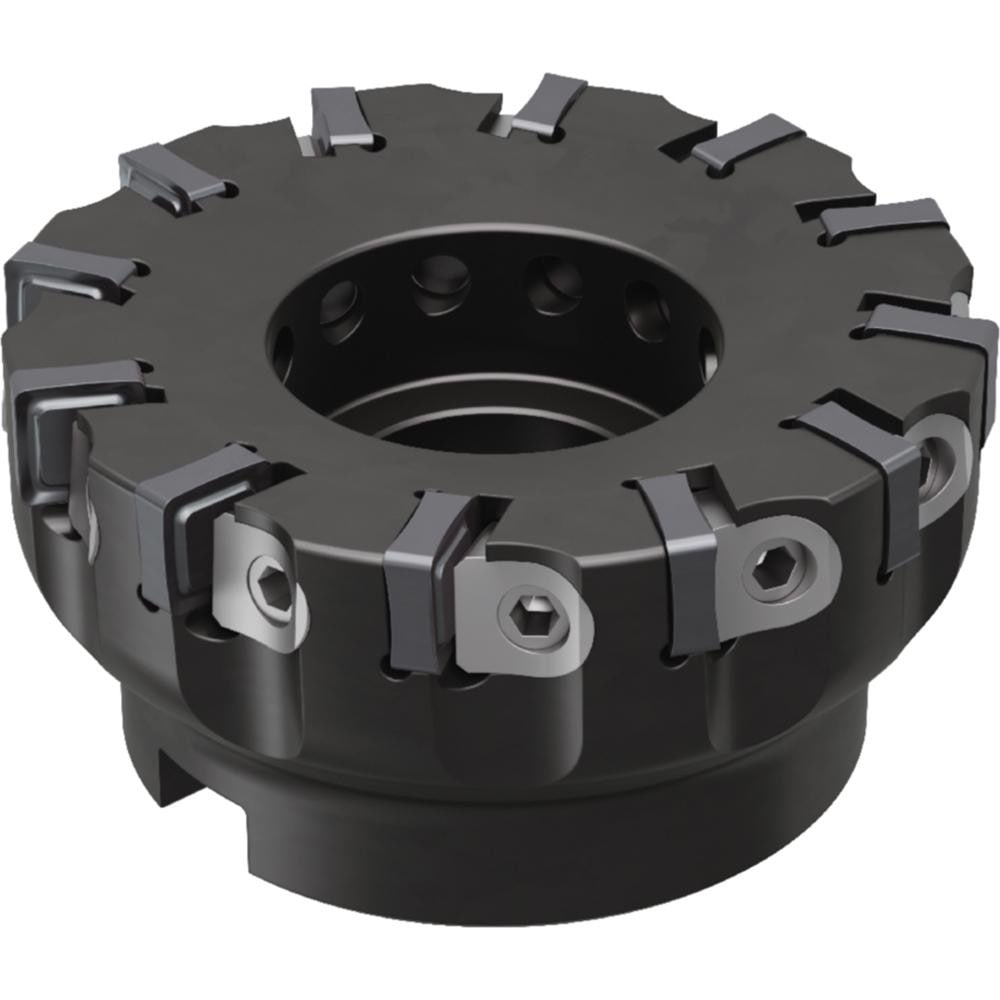

Brand: Widia / Part #: 6921193
Item #: 97483416
Brand: Widia
Model #: 6921193
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 4.0000 |
| Minimum Cutting Diameter (Inch) | 4 |
| Maximum Cutting Diameter (Inch) | 4-1/64 |
| Maximum Cutting Diameter (Decimal Inch) | 4.0149 |
| Maximum Depth of Cut (Decimal Inch) | 0.4528 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Lead Angle | 89.000 |
| Compatible Insert Size Code | SN..1204 |
| Cutter Style | M8090 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Rake | Negative |
| Series | M8090 |
| Hub Diameter (Inch) | 2-7/8 |
| Hub Diameter (Decimal Inch) | 2.8750 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Maximum Body Diameter (Decimal Inch) | 3.9213 |
| Tool Application | Facing; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Complete Insert Compatibility | SNHF120412SNMM |
| Toolholder Material | Steel |
| Number Of Cutter Inserts | 10 |
| Coolant Through | No |
| Number Of Flutes | 10 |
