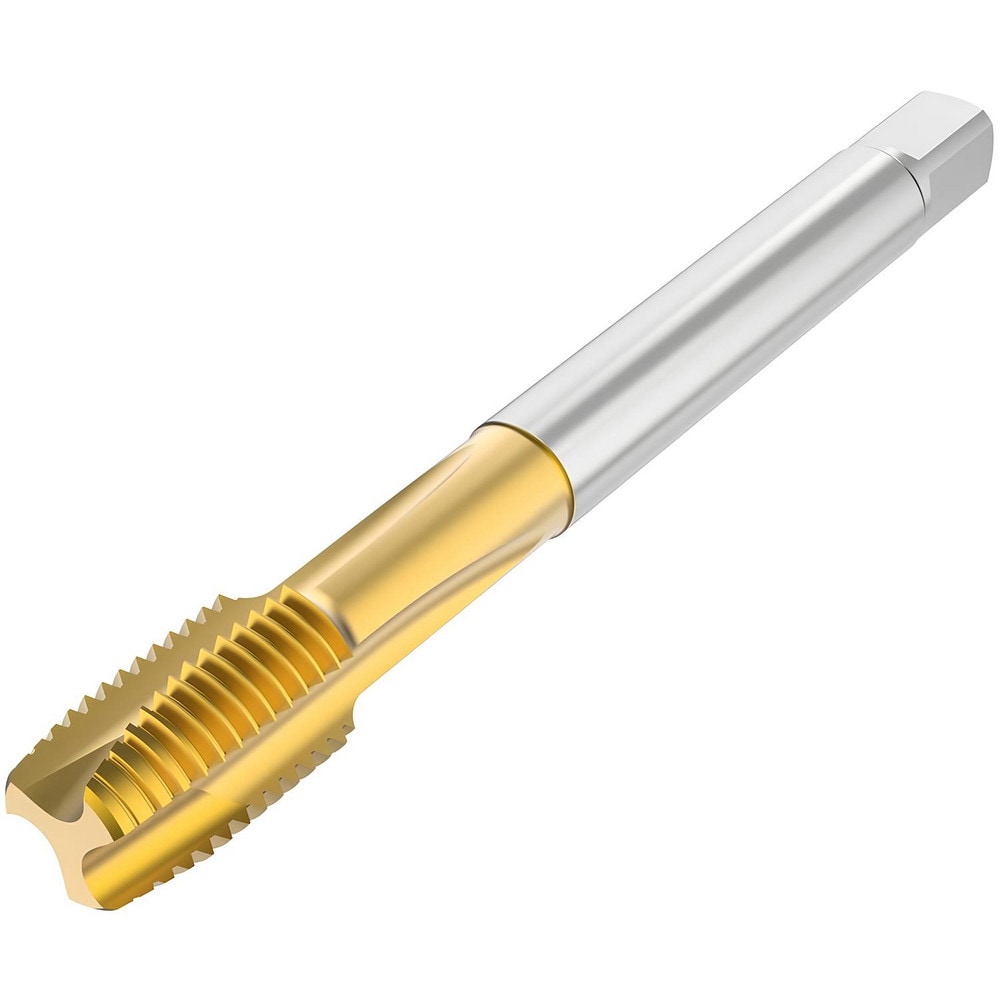

Brand: Seco / Part #: 10139549
Item #: 99729063
Brand: Seco
Model #: 10139549
Product Specifications
| Tap Type | Machine |
| Thread Size (Inch) | 11/4-12 |
| Class Of Fit | 2B |
| Number Of Flutes | 4 |
| Chamfer | Modified Bottoming |
| Material | HSS-E |
| Coating/Finish | TN |
| Threads per Inch | 12 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UNF |
| Overall Length (mm) | 150.0000 |
| Thread Pitch (mm) | 2.12 |
| Thread Length (mm) | 27.00 |
| Thread Depth (mm) | 27.00 |
| Oversize | No |
| Application | Through-Hole Threading |
| Shank Diameter (mm) | 22.0000 |
| Tapping Depth (mm) | 85.00 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | T32 |
| Neck Length | 58.00 |
| Shank Length (mm) | 65.000 |
