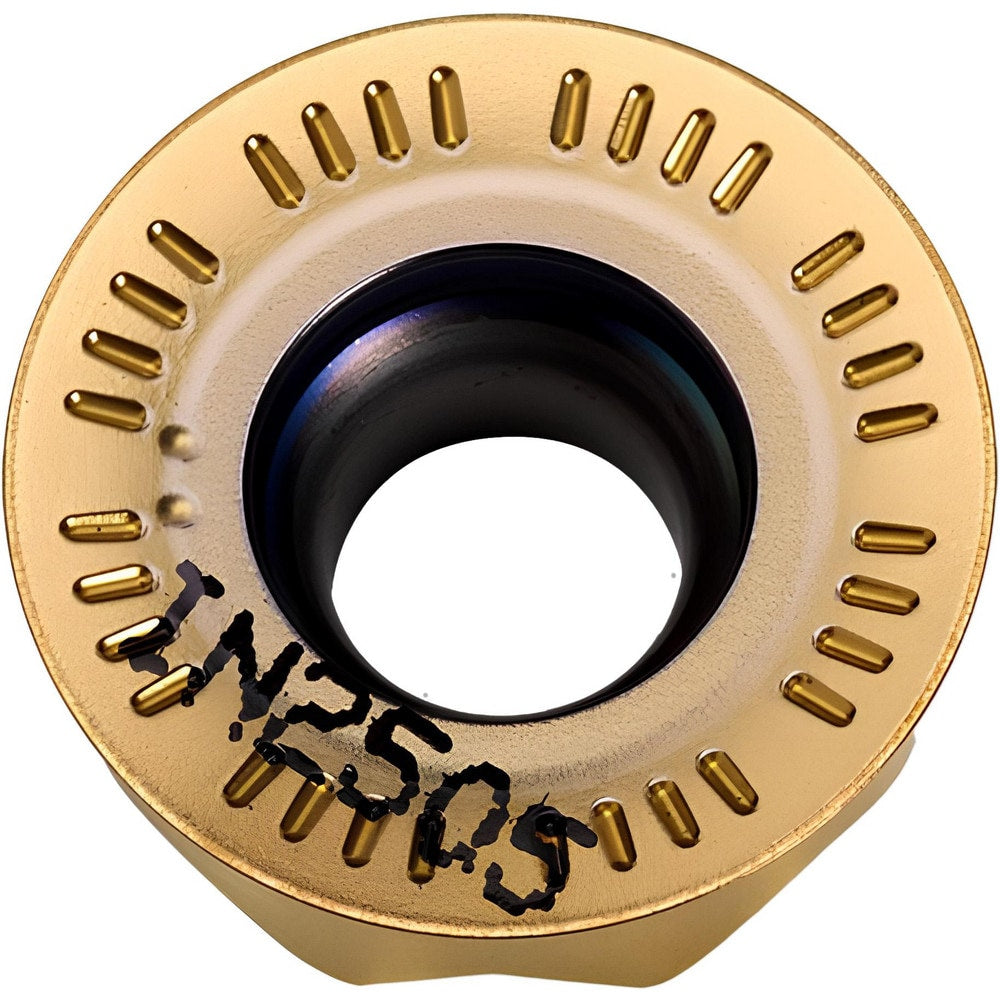

Brand: Ingersoll Cutting Tools / Part #: 6173436
Item #: 19430529
Brand: Ingersoll Cutting Tools
Model #: 6173436
Product Specifications
| Insert Style | RJLT |
| Insert Size Code | 1304 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2505 |
| Length (Inch) | 1/2 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/4 |
| Insert Hand | Neutral |
| Series | RJLT |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | RJLT1304MON |
| Manufacturers Catalog Number | RJLT1304MON IN2505 |
| Cutter Series Compatibility | 1A7H; 15B4H |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Shape | Round |
| Length of Cut (mm) | 6.3500 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1890 |
| Multi-Use Tool | No |
