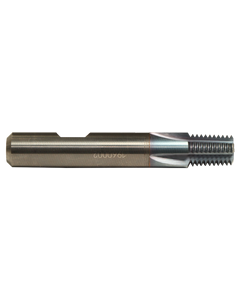

1/2-14 GF Style- Coolant Thru - TICN Thread Mill
Item #: ER4516807
Brand: EMUGE-FRANKEN
Model #: GF173136.5786
| Product Specifications | |
|---|---|
| Thread Size | 1/2″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Threads per Inch (TPI) | 14 |
| Shank Type | HB |
| Thread Diameter Size (TDZ) | 1/2″ |
| Coating | TiCN |
| Thread Standard | | NPTF | |
| Application | | Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Cutting Edge Material | Carbide |
| Overall Length (OAL) | 80 mm |
| Usable Length (LU) | 19 mm |
| Flute Count (NOF) | 4 |
| Series/List # | A223344 |
