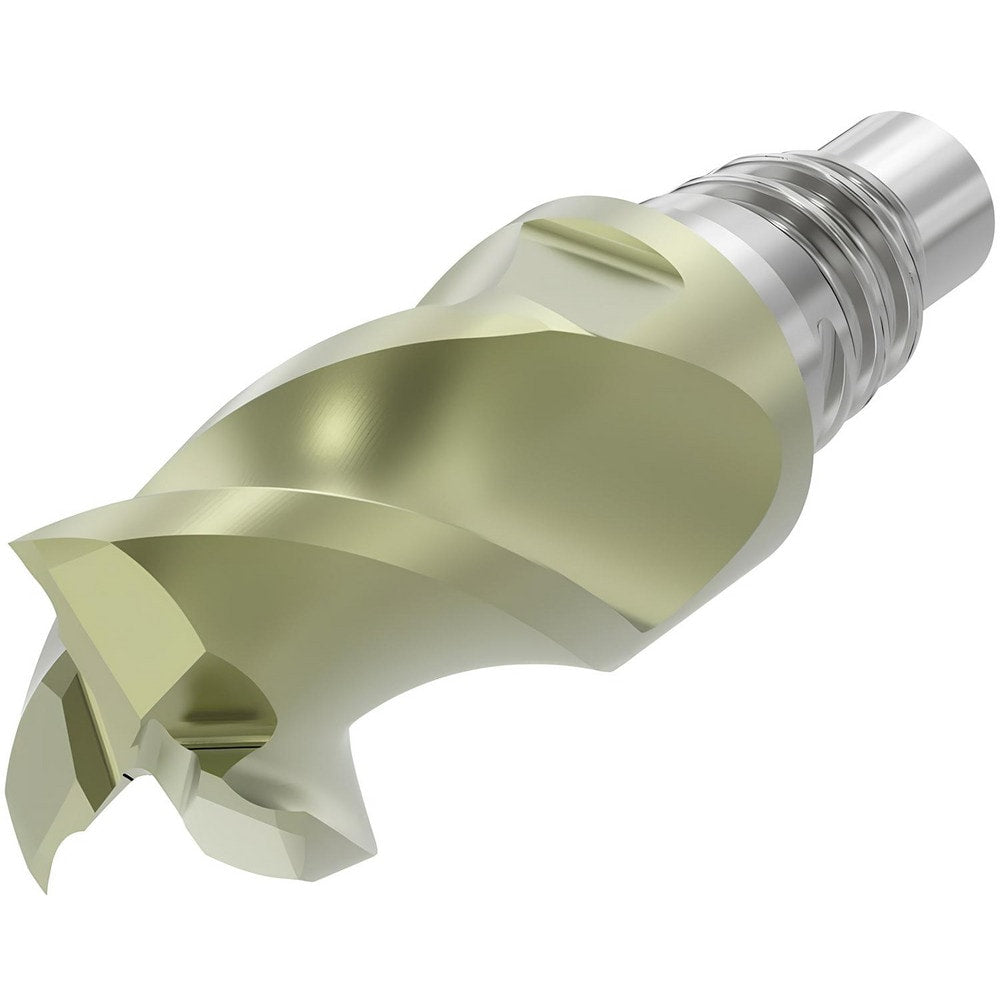

Brand: Seco / Part #: 10138373
Item #: 60848850
Brand: Seco
Model #: 10138373
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7500 |
| Connection Type | E20 |
| Overall Length (Decimal Inch) | 2.0630 |
| Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Center Cutting | Center Cutting |
| Flute Type | Helical |
| Helix Angle | 45 |
| Helix Style | High |
| Maximum Helix Angle | 45 |
| Minimum Helix Angle | 45 |
| Series/List | XSE450 |
| Variable Helix | No |
| Mill Diameter (Fractional Inch) | 3/4 |
| Pitch | Normal |
| End Type | Square End |
| Length Type | Standard |
| Number Of Pieces | 1 |
| Shank Type | Modular Connection |
| Extended Reach | No |
| Single Or Double End | Single |
| Manufacturers Grade | AXT |
| Material Application | Non-Ferrous Metal; Graphite; Thermosetting Plastic; Thermoplastic |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.9000 |
| Variable Index | No |
| Number Of Flutes | 3 |
| Finish Coating | AXT |
