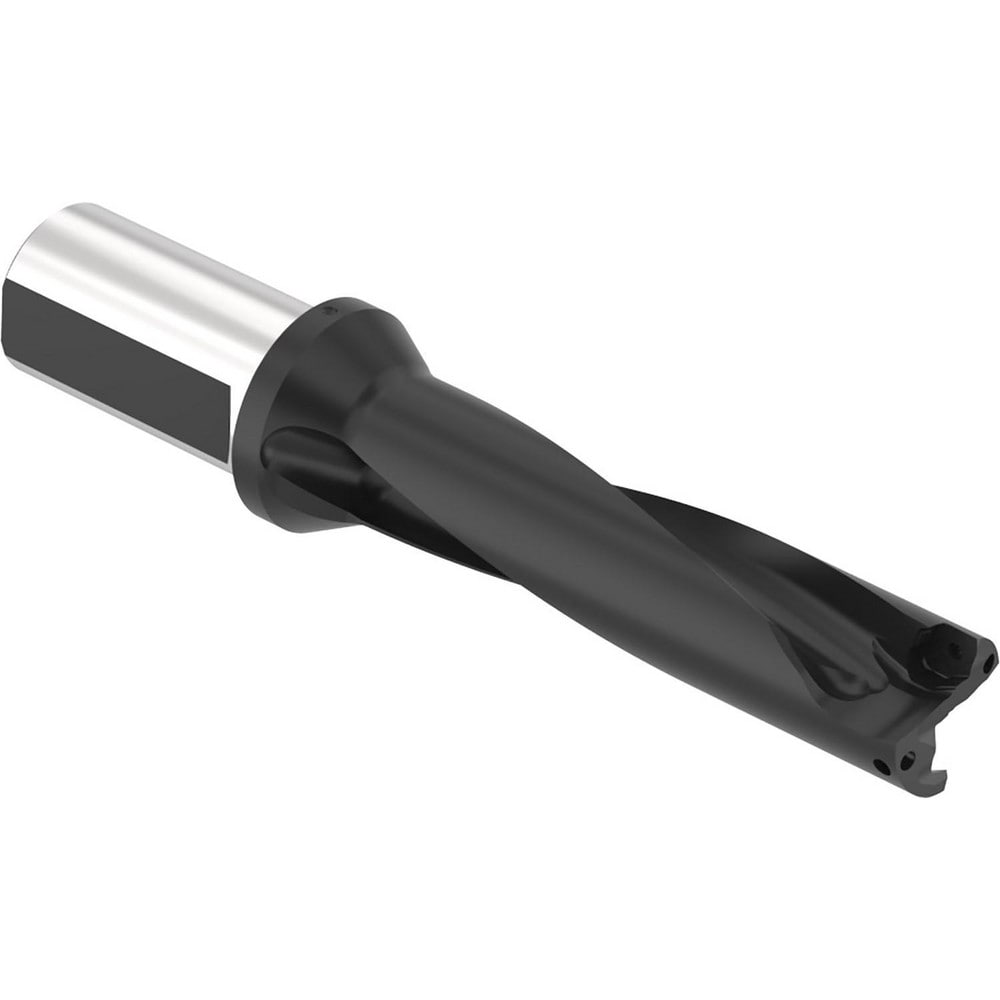

Brand: Allied Machine and Engineering / Part #: D4093150M-32FM
Item #: 99394470
Brand: Allied Machine and Engineering
Model #: D4093150M-32FM
Product Specifications
| Drill Style | D409 |
| Maximum Drill Diameter (mm) | 31.50 |
| Drill Diameter (mm) | 31.50 |
| Maximum Drill Depth (mm) | 126.00 |
| Shank Type | Flange |
| Shank Diameter (mm) | 32.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Compatible Insert Style | IC |
| Compatible Insert Size Code | 09 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (mm) | 207.7000 |
| Series | 4TEX |
| Flute Length (mm) | 148.70 |
| Shank Length (Decimal Inch) | 2.3230 |
| Shank Length (mm) | 59.000 |
| Coolant Through | Yes |
