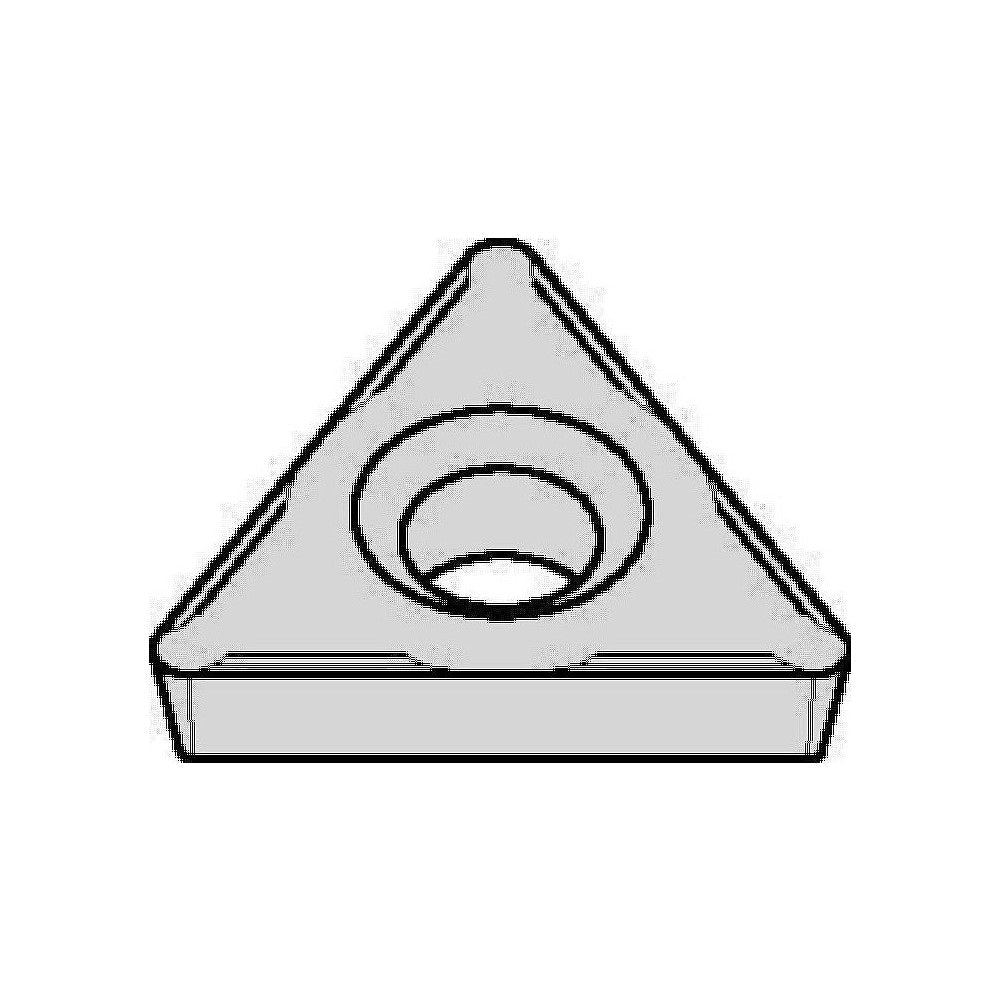

Brand: Widia / Part #: 2823908
Item #: 70730932
Brand: Widia
Model #: 2823908
Product Specifications
| Insert Style | TPCH |
| Insert Size Code | 21505 |
| Insert Material | Carbide |
| Material Grade | C7 |
| Thickness (Inch) | 3/32 |
| Manufacturer Grade | CG6 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Hole Diameter (Decimal Inch) | 0.1300 |
| Maximum Depth of Cut (Decimal Inch) | 0.2858 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0070 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Chipbreaker | Yes |
| Series | TPHH |
| Coating Process | CVD |
| Included Angle | 60.00 |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | TPHH21505 |
| Iso Code | TPHH110202 |
| Standards | ISO; ANSI |
| Cutting Direction | Neutral |
| Shape | Triangle |
| Manufacturers Catalog Number | TPHH110202 |
| Single or Multi Tipped | Multi Tipped |
| Length (Decimal Inch - 4 Decimals) | 0.4330 |
| Lead Angle | 60 |
| Width (Decimal Inch - 4 Decimals) | 0.4330 |
| Coating/Finish | TiCN; TiN |
| Thickness (Decimal Inch - 4 Decimals) | 0.0938 |
