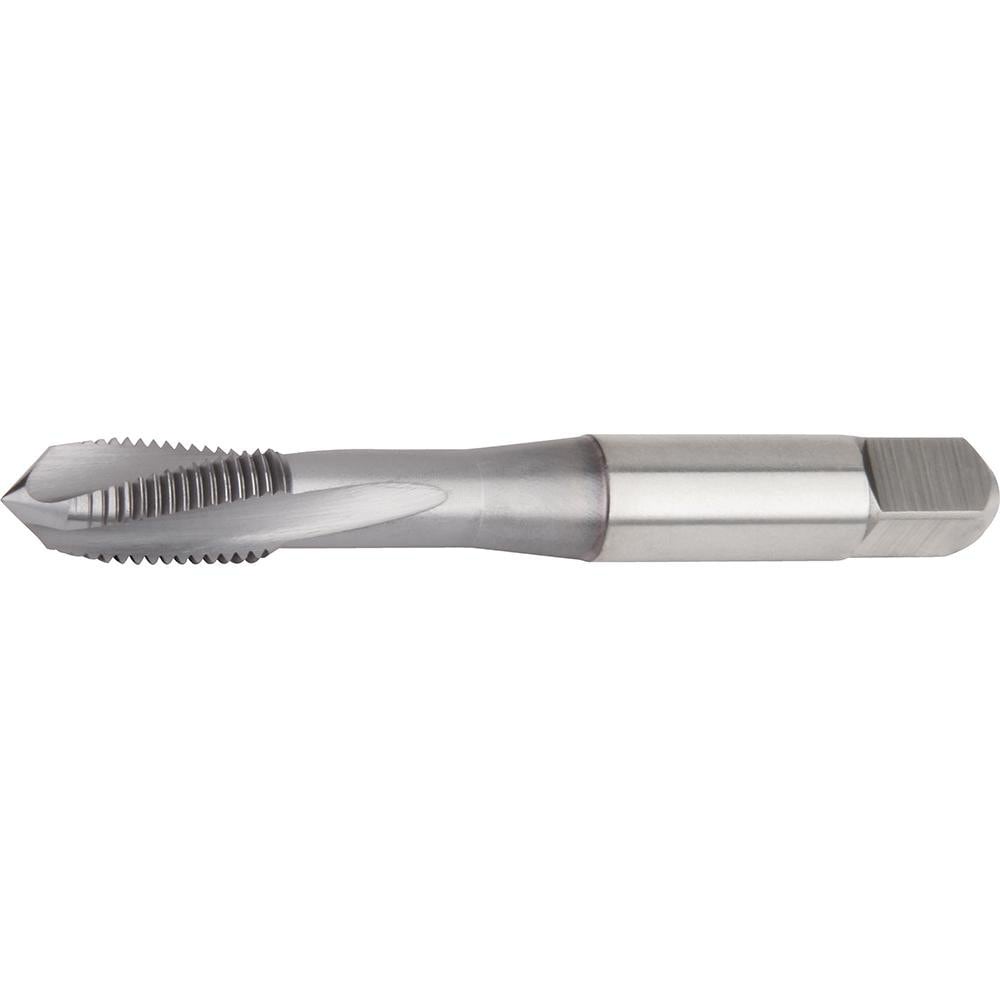

Brand: Widia / Part #: 5705564
Item #: 97302079
Brand: Widia
Model #: 5705564
Product Specifications
| Thread Size (Inch) | #6-40 |
| Chamfer | Plug |
| Thread Limit | H2 |
| Class Of Fit | 3B |
| Number Of Flutes | 3 |
| Material | Powdered Metal |
| Threads per Inch | 40 |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Coating/Finish | Oxide; Nitride |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.3600 |
| Overall Length (Decimal Inch) | 2.0000 |
| Thread Depth (Decimal Inch) | 0.7200 |
| Thread Pitch (Decimal Inch) | 0.0250 |
| Thread Standard | UNF |
| Material Grade | WS39MG |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Size (Decimal Inch) | 0.1080 |
| Material Application | High-Temperature Alloy |
| Series | GT90 |
